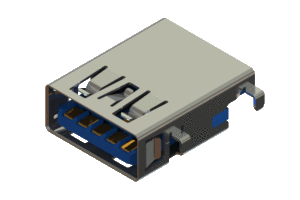

Mid-mount USB 3.0 Type-A connector with tab down polarization, 690H509-252-252

Manufacturer	EDAC Inc.
Description	Mid-mount USB 3.0 Type-A connector with tab down polarization. The contacts have Gold flash plating and have PCB tails. It is mounted with 4 through hole tabs and hasno tabs on the leading edge. The insulator is PA9T and is blue in colour.
Part Number	690H509-252-252
Material	PA9T
Series	690H
Gender	Receptacle
Connector Type	USB 3.0 Type-A (Tab Down)
Contact Plating	Gold Flash Plating
Contact Description	Mid-mount PCB (Board cut-out Required)

Mounting Option	4 Through Hole Grounding Tabs
Connector Option	No Tabs on Leading Edge
Insulator Color	Blue
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690H509-252-252	PA9T	690H	Receptacle	USB 3.0 Type-A (Tab Down)	Gold Flash Plating	Mid-mount PCB (Board cut-out Required)	4 Through Hole Grounding Tabs	No Tabs on Leading Edge	Blue	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating

Documentation

Datasheet

Series Ordering Guide
