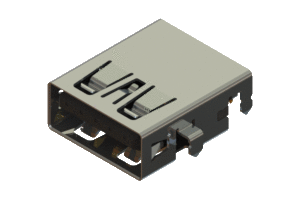

Mid-mount USB 3.0 Type-A connector with tab down polarization, 690H109-652-211

Manufacturer	EDAC Inc.
Description	Mid-mount USB 3.0 Type-A connector with tab up polarization. The contacts have Gold plating and have PCB tails. It is mounted with 4 through hole tabs and hasno tabs on the leading edge. The insulator is LCP and is black in colour.
Part Number	690H109-652-211
Material	LCP
Series	690H
Gender	Receptacle
Connector Type	USB 3.0 Type-A (Tab Up)
Contact Plating	30 Microinches of Gold Plating
Contact Description	Mid-mount PCB (Board cut-out Required)

Mounting Option	4 Through Hole Grounding Tabs
Connector Option	No Tabs on Leading Edge
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690H109-652-211	LCP	690H	Receptacle	USB 3.0 Type-A (Tab Up)	30 Microinches of Gold Plating	Mid-mount PCB (Board cut-out Required)	4 Through Hole Grounding Tabs	No Tabs on Leading Edge	Black	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating

Documentation

Datasheet

Series Ordering Guide
