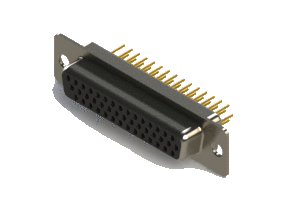

Machined D-Sub Connectors, 638-M44-230-BN1

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via Ø.120" (Ø3.05mm) through holes.
Part Number	638-M44-230-BN1
Series	638M
Positions	44
Gender	Receptacle (Socket)

Contact Description	P.C.B. Tail .232" (5.90mm)
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Insulator Color	Black
Mounting Feature	Thru Hole .120" (3.05mm)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Description	Contact Plating	Shell Plating	Insulator Color	Mounting Feature
1	1	638-M44-230-BN1	638M	44	Receptacle (Socket)	P.C.B. Tail .232" (5.90mm)	Gold Flash Plating	Nickel	Black	Thru Hole .120" (3.05mm)

Documentation

Datasheet
