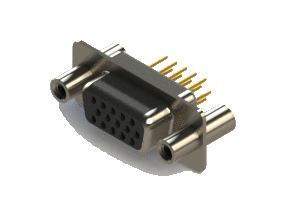

Machined D-Sub Connectors, 638-M15-230-BN4

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via 4-40 UNC threaded inserts, has threaded standoffs and a board spacer.
Part Number	638-M15-230-BN4
Series	638M
Positions	15
Gender	Receptacle (Socket)

Contact Description	P.C.B. Tail .232" (5.90mm)
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Insulator Color	Black
Mounting Feature	#4-40 UNC Insert + Board Spacer + Standoff

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Description	Contact Plating	Shell Plating	Insulator Color	Mounting Feature
1	1	638-M15-230-BN4	638M	15	Receptacle (Socket)	P.C.B. Tail .232" (5.90mm)	Gold Flash Plating	Nickel	Black	#4-40 UNC Insert + Board Spacer + Standoff

Documentation

Datasheet

Contact the supplier

EDAC Inc.

Established in 1966, Edac became a world leader in the Card Edge and Rack & Panel industry. Many of our legacy designs are still in use today though over the years, we’ve expanded our line to include one of the widest ranges of interconnect solutions in the world.
