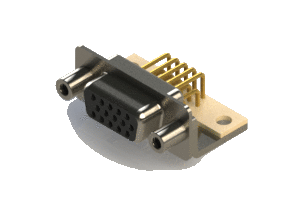

High Density D-Sub Connectors, 634-M15-263-BN6

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via 4-40 UNC threaded standoffs, has a stabilizing PCB and Ø.126" (Ø3.20mm) through holes.
Part Number	634-M15-263-BN6
Series	634M
Positions	15
Gender	Receptacle (Socket)

Contact Tail Length	Standard Contact Tail Length (3.50 ± 0.40)
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Gold Plating	Gold Flash Plating
Insulator Color	Black
Mounting Feature	#4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Tail Length	Contact Plating	Shell Plating	Gold Plating	Insulator Color	Mounting Feature
1	1	634-M15-263-BN6	634M	15	Receptacle (Socket)	Standard Contact Tail Length (3.50 ± 0.40)	Gold Flash Plating	Nickel	Gold Flash Plating	Black	#4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole

Documentation

Datasheet
