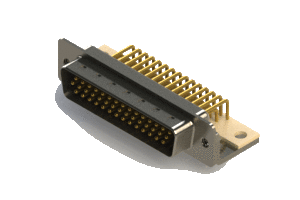

High Density D-Sub Connectors, 633-M44-263-BN4

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via 4-40 UNC threaded inserts, has a stabilizing PCB and Ø.126" (Ø3.20mm) through holes.
Part Number	633-M44-263-BN4
Series	633M
Positions	44
Gender	Plug (Pin)

Contact Tail Length	Standard Contact Tail Length (3.50 ± 0.40)
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Gold Plating	Gold Flash Plating
Insulator Color	Black
Mounting Feature	#4-40 UNC Insert + Stabilizer PCB + .126" (3.20mm) Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Tail Length	Contact Plating	Shell Plating	Gold Plating	Insulator Color	Mounting Feature
1	1	633-M44-263-BN4	633M	44	Plug (Pin)	Standard Contact Tail Length (3.50 ± 0.40)	Gold Flash Plating	Nickel	Gold Flash Plating	Black	#4-40 UNC Insert + Stabilizer PCB + .126" (3.20mm) Hole

Documentation

Datasheet
