HDMI Type-D connector, 694H319-262-211

Manufacturer	EDAC Inc.

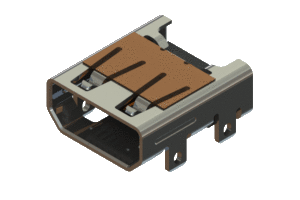

Description	HDMI Type-D connector. The contacts have Gold flash plating and have right angle SMT tails. The shell is mounted with 4 through hole tabs . The insulator is LCP and is black in colour.
Part Number	694H319-262-211
Material	LCP
Series	694H
Gender	Receptacle
Connector Type	HDMI Type-D
Contact Plating	Gold Flash Plating
Contact Description	Right Angle SMT

Mounting Option	4 Through Hole Grounding Tabs < 1.15mm
Connector Option	No Tabs on Leading Edge
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	44N maximum
Withdrawal Force	5~25N minimum
Shell Material	Stainless steel with half bright tin plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	694H319-262-211	LCP	694H	Receptacle	HDMI Type-D	Gold Flash Plating	Right Angle SMT	4 Through Hole Grounding Tabs < 1.15mm	No Tabs on Leading Edge	Black	UL-94V-0 Thermoplastic	Copper Alloy	44N maximum	5~25N minimum	Stainless steel with half bright tin plating

Documentation

Datasheet

Series Ordering Guide

Contact the supplier
