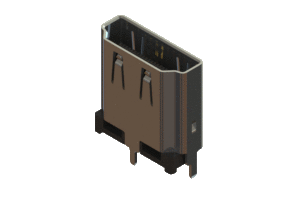

HDMI Type-A connector, 694F119-671-011

Manufacturer	EDAC Inc.
Description	HDMI Type-A connector. The contacts have Gold plating and have vertical SMT tails. It is mounted with 3 through hole tabs and is flush to the PCB. The insulator is LCP and is black in colour.
Part Number	694F119-671-011
Material	LCP
Series	694F
Gender	Receptacle
Connector Type	HDMI Type-A
Contact Plating	30 Microinches of Gold Plating
Contact Description	Vertical SMT

Mounting Option	3 Through Hole Grounding Tabs
Connector Option	Standard Body
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	44N maximum
Withdrawal Force	10N minimum to 39N maximum
Shell Material	Copper alloy with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	694F119-671-011	LCP	694F	Receptacle	HDMI Type-A	30 Microinches of Gold Plating	Vertical SMT	3 Through Hole Grounding Tabs	Standard Body	Black	UL-94V-0 Thermoplastic	Copper Alloy	44N maximum	10N minimum to 39N maximum	Copper alloy with nickel plating

Documentation

Datasheet

Series Ordering Guide
