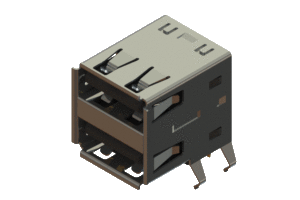

Dual Stack USB Type-A connector, 690N208-224-021

Manufacturer	EDAC Inc.
Description	Dual Stack USB Type-A connector. The contacts have Gold flash plating and have right angle PCB tails. The shell is mounted with 4 boardlocks and has tabs on the leading edge. The insulator is PBT and is black in colour.
Part Number	690N208-224-021
Material	PBT
Series	690N
Gender	Receptacle
Connector Type	USB 2.0 Type-A Dual Stack
Contact Plating	Gold Flash Plating
Contact Description	Right Angle PCB

Mounting Option	4 Metal Board Locks
Connector Option	Tabs on Leading Edge
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690N208-224-021	PBT	690N	Receptacle	USB 2.0 Type-A Dual Stack	Gold Flash Plating	Right Angle PCB	4 Metal Board Locks	Tabs on Leading Edge	Black	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
