Card Edge Connector, 345-020-559-808

Manufacturer	EDAC Inc.

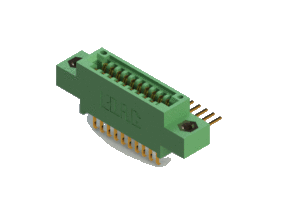

Description	Series 345 (.100" (2.54mm) contact spacing) Card Edge Connector with 20 90 Deg' Tail Bend in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with #4-40 Unified Threaded Inserts.
Part Number	345-020-559-808
Material	UL 94V-0 Thermoplastic Polyester
Series	345
Positions	20
Gender	Female

Color	Green
Pitch	.100" (2.54mm) Contact Spacing
Rows	Dual Row
Insulator Style	.170" (4.32mm) Offset Lugs
Row Spacing	0.200" (5.08mm)
Contact Description	90 Degree Bend
Mounting Option	#4-40 Unified Threaded Inserts

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Insulator Style	Row Spacing	Contact Description	Mounting Option
1	1	345-020-559-808	UL 94V-0 Thermoplastic Polyester	345	20	Female	Green	.100" (2.54mm) Contact Spacing	Dual Row	.170" (4.32mm) Offset Lugs	0.200" (5.08mm)	90 Degree Bend	#4-40 Unified Threaded Inserts
