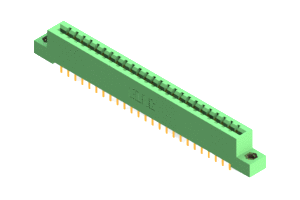

Card Edge Connector, 337-050-520-208

Manufacturer	EDAC Inc.
Description	Series 337 (.156" (3.96mm) contact spacing) Card Edge Connector with 50 P.C Tail type contacts. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
Part Number	337-050-520-208
Material	UL 94V-0 Thermoplastic Polyester
Series	337
Positions	50
Gender	Female
Color	Green

Pitch	0.156" (3.96mm)
Rows	Dual Row
Insulator Style	Flush Mounting Lugs
Row Spacing	0.200" (5.08mm)
Contact Description	P.C. Tail
Contact Tail Size	.030" x .018" (0.76mm x 0.46mm)
Contact Tail Length	.175" (4.45mm)
Mounting Option	#4-40 Unified Threaded Inserts

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Insulator Style	Row Spacing	Contact Description	Contact Tail Size	Contact Tail Length	Mounting Option
1	1	337-050-520-208	UL 94V-0 Thermoplastic Polyester	337	50	Female	Green	0.156" (3.96mm)	Dual Row	Flush Mounting Lugs	0.200" (5.08mm)	P.C. Tail	.030" x .018" (0.76mm x 0.46mm)	.175" (4.45mm)	#4-40 Unified Threaded Inserts
