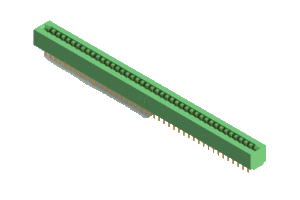

Card Edge Connector, 307-084-520-201

Manufacturer	EDAC Inc.
Description	Series 307 (.156" (3.96mm) contact spacing) Card Edge Connector with 84 P.C Tail type contacts with gold plating on the contact area. The Insulator is Green in color with No Mounting Lugs.
Part Number	307-084-520-201
Material	UL 94V-0 Thermoplastic Polyester
Series	307
Positions	84
Gender	Female
Color	Green

Pitch	.156" (3.96mm)
Rows	Dual Row
Row Spacing	0.200" (5.08mm)
Contact Description	P.C. Tail
Contact Tail Size	.046" x .013" (1.17mm x 0.33mm)
Contact Tail Length	.213'' (5.41mm)
Mounting Option	No Mounting Lugs

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Row Spacing	Contact Description	Contact Tail Size	Contact Tail Length	Mounting Option
1	1	307-084-520-201	UL 94V-0 Thermoplastic Polyester	307	84	Female	Green	.156" (3.96mm)	Dual Row	0.200" (5.08mm)	P.C. Tail	.046" x .013" (1.17mm x 0.33mm)	.213'' (5.41mm)	No Mounting Lugs

Documentation

Datasheet
