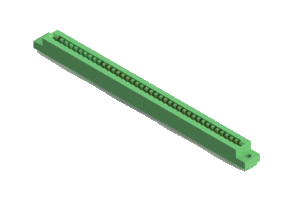

Card Edge Connector, 307-078-559-202

Manufacturer	EDAC Inc.
Description	Series 307 (.156" (3.96mm) contact spacing) Card Edge Connector with 78 90 Deg' Tail Bend contacts with gold plating on the contact area. The Insulator is Green in color with Ø.128" (Ø3.25mm) Mounting Holes.
Part Number	307-078-559-202
Material	UL 94V-0 Thermoplastic Polyester
Series	307
Positions	78
Gender	Female

Color	Green
Pitch	.156" (3.96mm)
Rows	Dual Row
Row Spacing	0.200" (5.08mm)
Contact Description	90 Degree Bend
Mounting Option	.128'' (3.25mm) Dia. Mounting Holes

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Row Spacing	Contact Description	Mounting Option
1	1	307-078-559-202	UL 94V-0 Thermoplastic Polyester	307	78	Female	Green	.156" (3.96mm)	Dual Row	0.200" (5.08mm)	90 Degree Bend	.128'' (3.25mm) Dia. Mounting Holes

Documentation

Datasheet
