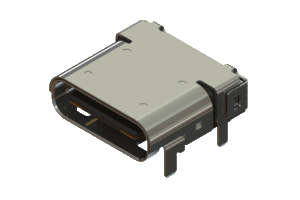

24 pin USB Type-C connector, 698C124-606-211

Manufacturer	EDAC Inc.
Description	24 pin USB Type-C connector. The contacts have Gold plating and have right angle PCB and SMT tails. It is mounted to the PCB with plastic posts and 4 tabs with a 5.0mm ± 0.25 footprint. The insulator is LCP and is black in colour.
Part Number	698C124-606-211
Material	LCP
Series	698C
Gender	Receptacle
Connector Type	USB Type-C (24 Pin)
Contact Plating	30 Microinches of Gold Plating
Contact Description	Right Angle PCB & SMT Mix

Mounting Option	Plastic Posts & 4 Grounding Tabs - 5.00mm - 0.25 Footprint
Connector Option	Standard - Flush or Mid-Mount to PCB
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	5~20N
Withdrawal Force	8~20N
Shell Material	Stainless steel with half bright tin plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	698C124-606-211	LCP	698C	Receptacle	USB Type-C (24 Pin)	30 Microinches of Gold Plating	Right Angle PCB & SMT Mix	Plastic Posts & 4 Grounding Tabs - 5.00mm - 0.25 Footprint	Standard - Flush or Mid-Mount to PCB	Black	UL-94V-0 Thermoplastic	Copper Alloy	5~20N	8~20N	Stainless steel with half bright tin plating
