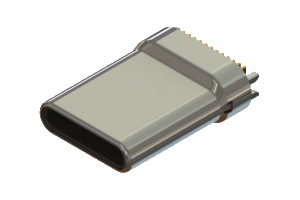

24 pin USB Type-C cable end connector, 699C124-6A6-111

Manufacturer	EDAC Inc.
Description	24 pin USB Type-C cable end connector. The contacts have Gold plating and have SMT tails mating to both side of the PCB. It is mounted with 4 SMT tabs and has a plain metal shell. The insulator is LCP and is black in colour.
Part Number	699C124-6A6-111
Material	LCP
Series	699C
Gender	Plug
Connector Type	USB Type-C (24 Pin)
Contact Plating	30 Microinches of Gold Plating
Contact Description	SMT Both Sides of Board

Mounting Option	4 SMT Grounding Tabs
Shell Option	Metal Shell with No Cable Crimp
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	5~20N
Withdrawal Force	8~20N
Shell Material	Stainless steel with half bright tin plating
