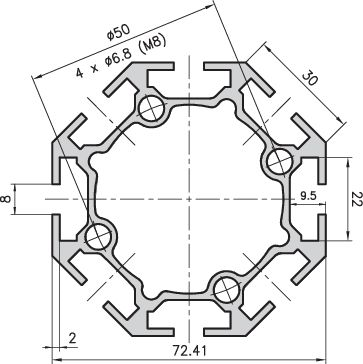

SPECIAL EXTRUSIONS - 30 mm BASE OCTAGONAL EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	SPECIAL EXTRUSIONS - 30 mm BASE OCTAGONAL EXTRUSION
Part number	B15-3-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix, y (cm4)	Wx, y (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	B15-3	51.01	14.09	10.3	2.8

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Product Description

Ideal for large, heavy duty machine enclosures in a round design, and as an axial extrusion for rotating structures. It can also have base plates bolted on and be used as a support extrusion. An elegant extrusion for interior decoration such as tables, ca

Documentation

Catalogue Page

Contact the supplier

DRECKSHAGE GmbH & Co. KG

The Paradise For Machine Manufacturers Since 1924, our family enterprise has been focusing on the wishes of our customers. Within our four business areas, materials – linear guidance systems - profiles+systems and technical rollers, we have exactly what you are looking for. We solve your engineering problems. Consultancy, project planning, construction, cutting, prefabrication, manufacture, assembly and customer logistics. For DRECKSHAGE, no customer request is too individual: From a single item to mass production. We can also provide you with smallest quantities and single items.
