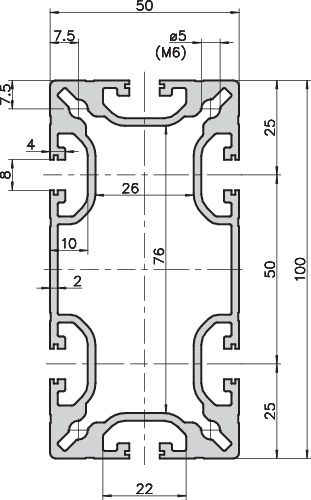

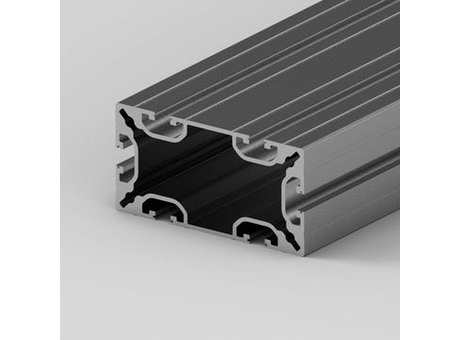

SPECIAL EXTRUSION - COUNTERWEIGHT EXTRUSION 50x100

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	SPECIAL EXTRUSION - COUNTERWEIGHT EXTRUSION 50x100
Part number	A19-2-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix (cm4)	Iy (cm4)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	A19-2	41.82	16.43	8.36	6.57	12.33	3.33

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Product Description

Counterweights can be inserted into this extrusion for vertical sliding doors. This is a combination extrusion of base 40 + 50. The slots are based on the geometry of base 40 which is why base 40 accessories are the most suitable to use. This extrusion ca

Documentation

Catalogue Page
