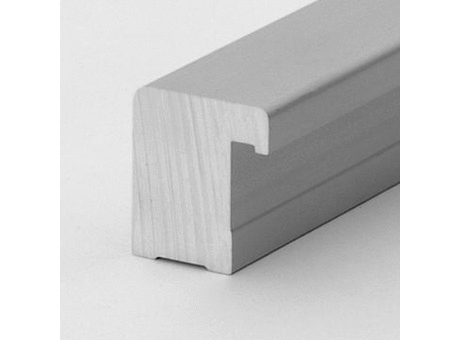

SPECIAL EXTRUSION - CLAMPING BOX BASE 50

Manufacturer DRECKSHAGE GmbH & Co. KG
Description SPECIAL EXTRUSION - CLAMPING BOX BASE 50
Part number A34-0-02-02/200
Omniclass number 23.13.17.00
CAD models
Please make sure this software has been installed.

Product selection

Level of detail
Delivery
Min length (mm)
Standard length (mm)
Length (mm)
Machining left (no model adjustment)
Machining right (no model adjustment)

Product Description

To connect two extrusions of base 50. A very sturdy cross or parallel connection is produced. Two clamping blocks are required to create the parallel connection.

Documentation

Contact the supplier

DRECKSHAGE GmbH & Co. KG

DRECKSHAGE GmbH & Co. KG

The Paradise For Machine Manufacturers Since 1924, our family enterprise has been focusing on the wishes of our customers. Within our four business areas, materials – linear guidance systems - profiles+systems and technical rollers, we have exactly what you are looking for. We solve your engineering problems. Consultancy, project planning, construction, cutting, prefabrication, manufacture, assembly and customer logistics. For DRECKSHAGE, no customer request is too individual: From a single item to mass production. We can also provide you with smallest quantities and single items.
