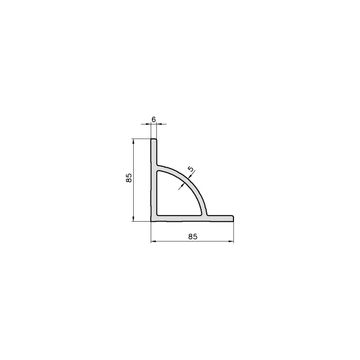

BRACKET EXTRUSION - ANGLE EXTRUSION 85x85x6

Manufacturer DRECKSHAGE GmbH & Co. KG
Description BRACKET EXTRUSION - ANGLE EXTRUSION 85x85x6
Part number E30-3-02-02/200
Omniclass number 23.13.17.00
CAD models
Please make sure this software has been installed.

Product selection

Delivery
Min length (mm)
Standard length (mm)
Length (mm)
Machining left (no model adjustment)
Machining right (no model adjustment)

Product Description

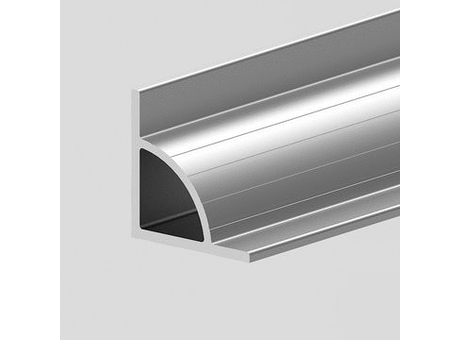

This angle extrusion is the starting material for mounting brackets for the base 45 products. The support arch with the Kanya shadow slots appears very elegant.

Documentation
