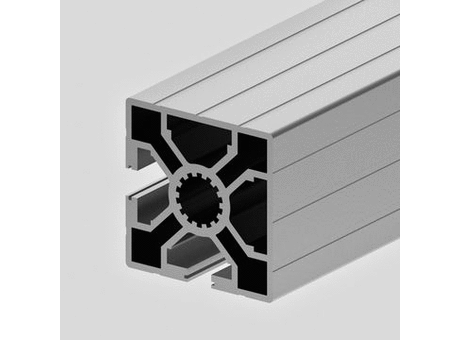

BASE PROFILE 50 mm - 50x50 CORNER EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 50 mm - 50x50 CORNER EXTRUSION
Part number	A01-7-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix,y (cm4)	Wx,y (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	A01-7	17.7	7.05	7.5	2

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	50x50 FACE EXTRUSION	A01-8
2	2	50x50 DOUBLE FACE EXTRUSION	A02-4
3	3	50x45° ANGLE EXTRUSION	A02-8
4	4	50x50 FACE EXTRUSION WITH RIP OFF PANEL SLOTS	A03-8

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	6	BASE PLATE	A47-50
2	1	CONNECTOR	A20-90
3	4	END CAP	A40-10
4	3	LIGHT EXTRUSION NUT	A32-65
5	5	THREADED INSERT	A33-20
6	2	THREADED PLATE	AC32-60

Product Description

Corner and face extrusions are used in any applications where closed surfaces are required. The advantages of these are that they improve the appearance of the structures and also minimise the build up of dirt. Extrusions can be fitted onto the closed fac

Documentation

Catalogue Page
