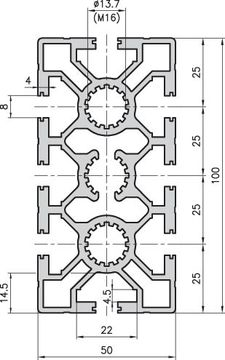

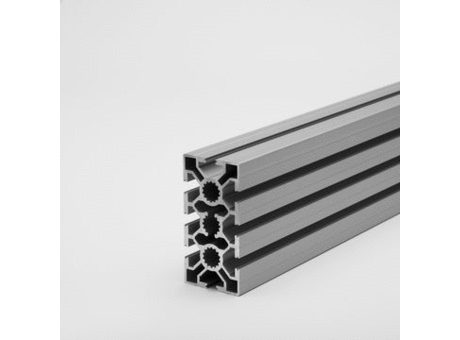

BASE PROFILE 50 mm - 50x100 BASE EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 50 mm - 50x100 BASE EXTRUSION
Part number	A01-2-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix (cm4)	Iy (cm4)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	A01-2	149.84	41.25	29.97	16.5	16.84	4.6

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	50x100 HEAVY DUTY EXTRUSION	MA1-2
2	2	50x100 FACE EXTRUSION	MA1-4

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	1	CONNECTOR	A20-90
2	2	THREADED PLATE	AC32-60
3	3	LIGHT EXTRUSION NUT	A32-65
4	4	END CAP	A40-20
5	5	THREADED INSERT	A33-20

Product Description

This base extrusion is normally used for cross-beams. Further, its optimised cross section means that it is ideal for an extremely wide range of applications.
