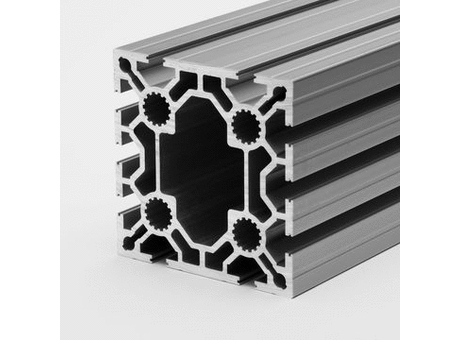

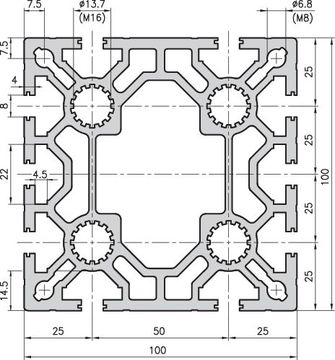

BASE PROFILE 50 mm - 100x100 HEAVY DUTY EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 50 mm - 100x100 HEAVY DUTY EXTRUSION
Part number	MA1-5-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix (cm4)	Iy (cm4)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	MA1-5	380	365	76	73	35.19	9.5

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	100x100 BASE EXTRUSION	MA2-5
2	2	CORNER EXTRUSION 100x100	A03-7

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	2	THREADED PLATE	AC32-60
2	3	LIGHT EXTRUSION NUT	A32-65
3	4	END CAP	A40-50
4	5	THREADED INSERT	A33-20
5	6	BASE PLATE	A47-80
6	7	FOOT PLATE	A80-20

Product Description

An extremely sturdy extrusion which is used as a support, stand or manifold. Ideal for building gantries if used in combination with the 100x200 heavy duty extrusion, MA1–9.
