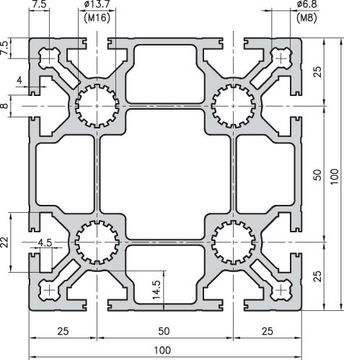

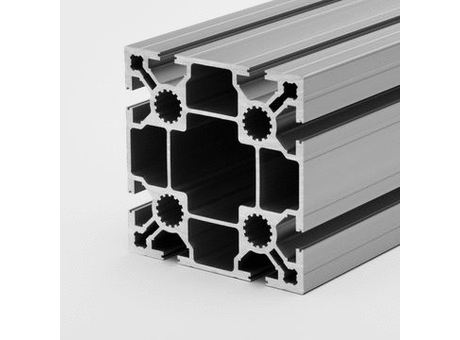

BASE PROFILE 50 mm - 100x100 BASE EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 50 mm - 100x100 BASE EXTRUSION
Part number	MA2-5-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix, y (cm4)	Wx, y (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	MA2-5	324.73	64.95	30	8.1

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	100x100 HEAVY DUTY EXTRUSION	MA1-5
2	2	CORNER EXTRUSION 100x100	A03-7

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	2	THREADED PLATE	AC32-60
2	3	LIGHT EXTRUSION NUT	A32-65
3	4	END CAP	A40-50
4	5	THREADED INSERT	A33-20
5	6	BASE PLATE	A47-80
6	7	FOOT PLATE	A80-20

Product Description

This versatile extrusion is mainly used in machinery and plant construction and boasts the following qualities: high strength, excellent torsional rigidity and low weight.
