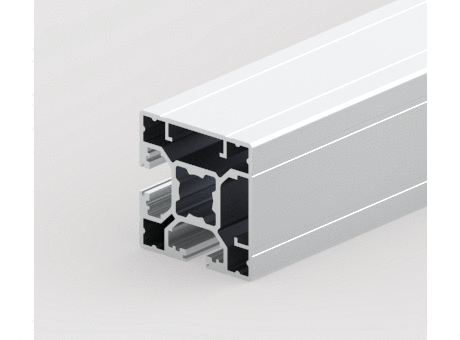

BASE PROFILE 45 mm - CORNER EXTRUSION 45x45

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 45 mm - CORNER EXTRUSION 45x45
Part number	E02-7-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

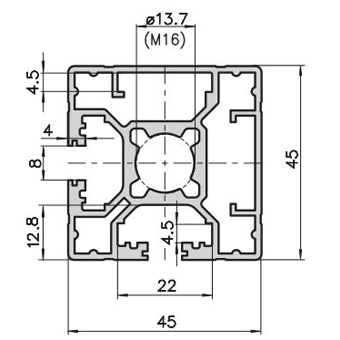

Index	Selector	Reference	Ix (cm4)	Iy (cm4)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	E02-7	11.75	11.83	5.12	5.16	5.63	1.52

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	FACE EXTRUSION 45x45	E02-6
2	5	DOUBLE FACE EXTRUSION 45x45	E02-4
3	6	SOFTLINE EXTRUSION 45x45	E03-1

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	2	CONNECTOR	E20-90
2	3	THREADED PLATE	AC32-60
3	8	LIGHT EXTRUSION NUT	A32-65
4	12	END CAP	E40-10
5	14	THREADED INSERT BASE	A33-20

Product Description

Since it is closed on two sides, the corner extrusion has a compact appearance. This simplifies cleaning but it can still be used universally. Extrusions can also be fitted onto the closed faces.

Documentation

Catalogue Page

Contact the supplier

DRECKSHAGE GmbH & Co. KG

The Paradise For Machine Manufacturers Since 1924, our family enterprise has been focusing on the wishes of our customers. Within our four business areas, materials – linear guidance systems - profiles+systems and technical rollers, we have exactly what you are looking for. We solve your engineering problems. Consultancy, project planning, construction, cutting, prefabrication, manufacture, assembly and customer logistics. For DRECKSHAGE, no customer request is too individual: From a single item to mass production. We can also provide you with smallest quantities and single items.
