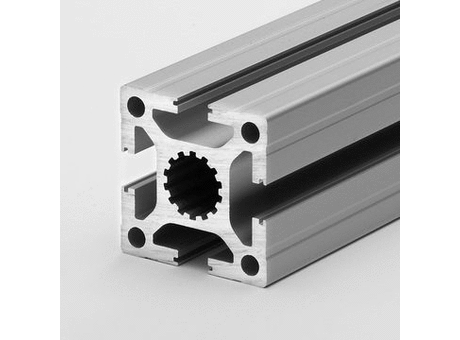

BASE PROFILE 40 mm - 40x40 BASE EXTRUSION

Manufacturer	DRECKSHAGE GmbH & Co. KG
Description	BASE PROFILE 40 mm - 40x40 BASE EXTRUSION
Part number	C01-1-02-02/200
Omniclass number	23.13.17.00

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Reference	Ix, y (cm4)	Wx, y (cm³)	Cross-section area (cm²)	Weight (kg/m)
1	1	C01-1	11.7	5.75	7.29	2

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Index	Selector	More products - Description	More products - Part number
1	1	40x40 SUPER LIGHTWEIGHT EXTRUSION	C03-1
2	2	40x40 LIGHTWEIGHT EXTRUSION	C02-1

Index	Selector	Matching accessories - Description	Matching accessories - Part number
1	2	CONNECTOR	C20-90
2	3	THREADED PLATE	AC32-60
3	7	LIGHT EXTRUSION NUT	C32-65
4	8	END CAP	C40-10
5	9	THREADED INSERT BASE	A33-20
6	10	BASE PLATE	C47-40

Product Description

These versatile extrusions can be used for all kinds of structures. With their 40 mm base, they complement extrusions with 20, 30 and 50 mm bases perfectly. The base extrusion itself is extraordinarily sturdy and is hard to beat in terms of value for mone

Documentation

Catalogue Page

Contact the supplier

DRECKSHAGE GmbH & Co. KG

The Paradise For Machine Manufacturers Since 1924, our family enterprise has been focusing on the wishes of our customers. Within our four business areas, materials – linear guidance systems - profiles+systems and technical rollers, we have exactly what you are looking for. We solve your engineering problems. Consultancy, project planning, construction, cutting, prefabrication, manufacture, assembly and customer logistics. For DRECKSHAGE, no customer request is too individual: From a single item to mass production. We can also provide you with smallest quantities and single items.
