Tubtara® blind rivet nut in stainless steel 304, low profile head, knurled shank, closed end

Manufacturer	DEJOND
Description	Tubtara Blind rivet nut M5N UKX30, stainless steel 304, low profile head, knurled shank, closed end
Part number	545 4507
Note	ON REQUEST - PROGRAMME IN PROGRESS

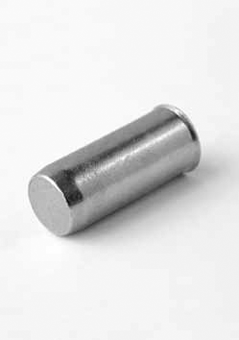

Note1	Picture shows smooth shank part, please refer to the KN open end counterpart to see the knurl
Omniclass number	23.13.23.11.13.17

CAD models

Request for quotation

Product selection

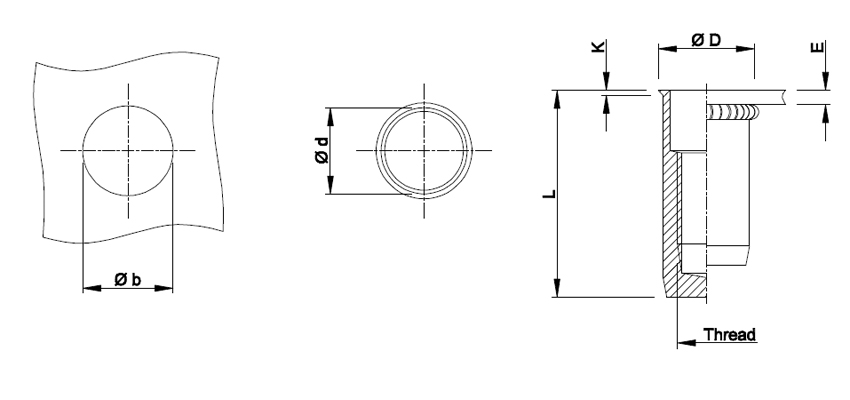

Index	Selector	Thread	Type	E = grip	L (mm)	d = shank dia (mm)	D (mm)	K (mm)	kg/1000	Order code	Box Q
1	1	M4N	UKX20	0,5-2,0	15.5	6	6.5	0.5	1.9	544 2507	5000
2	2	M5N	UKX30	0,5-3,0	18	7	7.5	0.5	2.7	545 4507	4000
3	3	M6N	UKX30	0,5-3,0	21.5	9	9.5	0.5	5.8	546 4507	2000
4	4	M8N	UKX30	0,5-3,0	24	11	11.5	0.5	8.8	548 1907	1250

Rivet

Grip length (mm)

Documentation

Catalogue

Technical data sheet ALL PARTS
