Tubtara® blind rivet nut in stainless steel 304, countersunk head, knurled shank, open end

Manufacturer	DEJOND
Description	Tubtara Blind rivet nut M10N SFO45, stainless steel 304, countersunk head, knurled shank, open end
Part number	540 6107
Note	ON REQUEST - PROGRAMME IN PROGRESS
Note1	Underhead knurl not shown in CAD drawings, versions with optional underhead knurls are on request
Omniclass number	23.13.23.11.13.17

CAD models

Request for quotation

Product selection

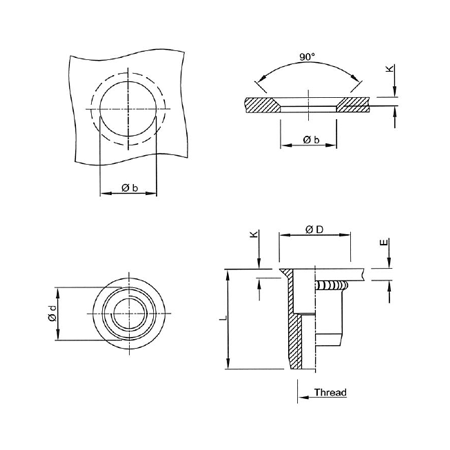

Index	Selector	Thread	Type	E = grip	L (mm)	d = shank dia (mm)	D (mm)	K (mm)	kg/1000	Order code	Box Q
1	1	M4N	UFO30	1,2-3,0	12	6	8	1	1.3	544 1207	7500
2	2	M5N	UFO35	1,2-3,5	12	7	9	1	1.6	545 2007	5000
3	3	M6N	UFO45	1,7- 4,5	17	9	12	1.5	4.2	546 1257	2000
4	4	M8N	UFO45	1,7- 4,5	17.5	11	14	1.5	5.5	548 0707	1250
5	5	M8N	UFO65	4,5-6,5	19.5	11	14	1.5	5.8	548 0757	1250
6	6	M10N	SFO45	1,7- 4,5	22.5	13	16	1.5	9.5	540 6107	750

Rivet

Grip length (mm)

Documentation

Catalogue

Technical data sheet ALL PARTS
