By Shenzhen Dasenic Electronics

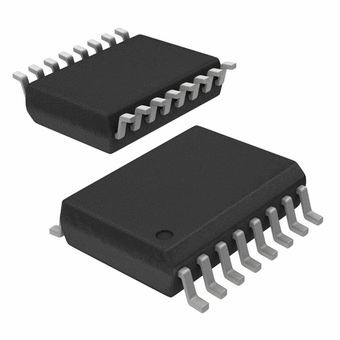

IC DAC 12BIT V-OUT 16SOIC MAX536ACWE+

Manufacturer	Analog Devices Inc./Maxim Integrated
Description	IC DAC 12BIT V-OUT 16SOIC
Manufacturer Part Number	MAX536ACWE+
Distributor Part Number	MAX536ACWE+-DS
Distributor	Dasenic
E-Shop link	https://www.dasenic.com
Quantity	1742

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Manufacturer Part Number	Distributor Part Number	Description	Quantity	Product Status	Number of Bits	Number of D/A Converters	Settling Time	Output Type	Differential Output	Data Interface	Reference Type	Voltage - Supply, Analog	Voltage - Supply, Digital	INL/DNL (LSB)	Architecture	Operating Temperature	Package / Case	Supplier Device Package	Mounting Type
1	No CAD available	1	MAX536ACWE+	MAX536ACWE+-DS	IC DAC 12BIT V-OUT 16SOIC	1742	Active	12	4	3µs (Typ)	Voltage - Buffered	No	SPI	External	10.8V ~ 13.2V, -5V	-	±0.15, ±1 (Max)	R-2R	0°C ~ 70°C	16-SOIC (0.295", 7.50mm Width)	16-SOIC	Surface Mount

Documentation

Contact the supplier

Shenzhen Dasenic Electronics

Our strong line mianly focuses on TI, Altera, Xilinx ,Stm, ON Microchip ADI and other brand as you can see in our website /www.dasenic.com/. nd we also promise to our customers that the products we sell are all original.
