By Shenzhen Dasenic Electronics

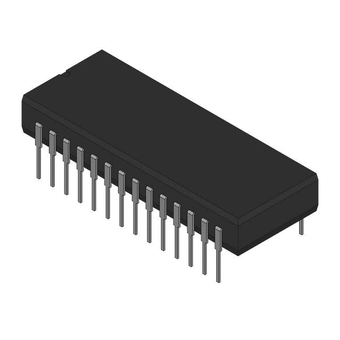

14-BIT, 100MSPS, HIGH SPEED DAC HI5741BIP

Manufacturer	Rochester Electronics
Description	14-BIT, 100MSPS, HIGH SPEED DAC
Manufacturer Part Number	HI5741BIP
Distributor Part Number	HI5741BIP-DS
Distributor	Dasenic
E-Shop link	https://www.dasenic.com
Quantity	3309

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Manufacturer Part Number	Distributor Part Number	Description	Quantity	Product Status	Number of Bits	Number of D/A Converters	Settling Time	Output Type	Differential Output	Data Interface	Reference Type	Voltage - Supply, Analog	Voltage - Supply, Digital	INL/DNL (LSB)	Architecture	Operating Temperature	Package / Case	Supplier Device Package	Mounting Type
1	No CAD available	1	HI5741BIP	HI5741BIP-DS	14-BIT, 100MSPS, HIGH SPEED DAC	3309	Active	14	1	20ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	4.75V ~ 5.25V	4.75V ~ 5.25V	±1, ±0.5	R-2R, Segmented DAC	-40°C ~ 85°C	28-SOIC (0.295", 7.50mm Width)	28-SOIC	Surface Mount

Documentation

Contact the supplier

Shenzhen Dasenic Electronics

Our strong line mianly focuses on TI, Altera, Xilinx ,Stm, ON Microchip ADI and other brand as you can see in our website /www.dasenic.com/. nd we also promise to our customers that the products we sell are all original.
