Torque Screw Jacks, Inch

Supports, Rests & Feet

Manufacturer	Carr Lane Manufacturing
Description	Torque Screw Jacks, Inch
Part Number	CL-4-TSJ
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	Finish	A THREAD	B (Inch)	C DIA (Inch)	END FORCE (lbs)	Measurement
1	1	CL-4-TSJ	Torque Screw Jacks, Inch	CL-4-TSJ		Steel	Black Oxide	1/4-20	7/16	7/8	12 - 14	Inch
2	2	CL-4-TSJ-NOTHREAD	Torque Screw Jacks, Without Thread, Inch	CL-4-TSJ	Without Thread	Steel	Black Oxide	1/4-20	7/16	7/8	12 - 14	Inch
3	3	CL-4A-TSJ	Torque Screw Jacks, Inch	CL-4A-TSJ		Steel	Black Oxide	5/16-18	7/16	7/8	14 - 16	Inch
4	4	CL-4A-TSJ-NOTHREAD	Torque Screw Jacks, Without Thread, Inch	CL-4A-TSJ	Without Thread	Steel	Black Oxide	5/16-18	7/16	7/8	14 - 16	Inch
5	5	CL-5-TSJ	Torque Screw Jacks, Inch	CL-5-TSJ		Steel	Black Oxide	3/8-16	7/16	7/8	16 - 18	Inch
6	6	CL-5-TSJ-NOTHREAD	Torque Screw Jacks, Without Thread, Inch	CL-5-TSJ	Without Thread	Steel	Black Oxide	3/8-16	7/16	7/8	16 - 18	Inch
7	7	CL-6-TSJ	Torque Screw Jacks, Inch	CL-6-TSJ		Steel	Black Oxide	1/2-13	1/2	1-1/8	18 - 20	Inch
8	8	CL-6-TSJ-NOTHREAD	Torque Screw Jacks, Without Thread, Inch	CL-6-TSJ	Without Thread	Steel	Black Oxide	1/2-13	1/2	1-1/8	18 - 20	Inch
9	9	CL-8-TSJ	Torque Screw Jacks, Inch	CL-8-TSJ		Steel	Black Oxide	5/8-11	1/2	1-1/8	20 - 22	Inch
10	10	CL-8-TSJ-NOTHREAD	Torque Screw Jacks, Without Thread, Inch	CL-8-TSJ	Without Thread	Steel	Black Oxide	5/8-11	1/2	1-1/8	20 - 22	Inch

Product Description

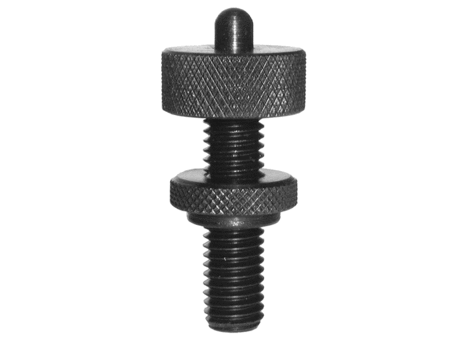

Screw jack with a spring-loaded clutch mechanism. Knurled head disengages when the indicated end force is reached. Prevents exerting excessive force on thinwall and other delicate workpieces. Furnished with Knurled Check Nut. Available in thread sizes from 1/4-20 to 5/8-11. Made in USA.

Documentation

Product Page

Product Catalog
