Swivel Hoist Rings (Standard Ring), Black Oxide Finish (Inch)

Hoist Rings

Manufacturer	Carr Lane Manufacturing
Description	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch
Part Number	CL-550-SHR-2
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	Finish	LOAD RATING (lbs)	A THREAD	B (Inch)	C (Inch)	D (Inch)	E DIA (Inch)	F (Inch)	G (Inch)	H (Inch)	J (Inch)	K (Inch)	L (Inch)	N DIA (Inch)	P (Inch)	INSTALLATION TORQUE (ft-lbs)	Measurement
1	1	CL-550-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-550-SHR-2		Steel	Black Oxide	550	1/4-20	.54	.71	2.67	3/8	.43	1.61	1.00	1.84	.96	2.31	.75	.17	5	Inch
2	12	CL-550-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-550-SHR-2	Without Thread	Steel	Black Oxide	550	1/4-20	.54	.71	2.67	3/8	.43	1.61	1.00	1.84	.96	2.31	.75	.17	5	Inch
3	23	CL-800-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-800-SHR-1		Steel	Black Oxide	800	5/16-18	.29	.72	2.63	3/8	.44	1.62	1.00	1.82	1.03	2.35	.75	.17	7	Inch
4	34	CL-800-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-800-SHR-1	Without Thread	Steel	Black Oxide	800	5/16-18	.29	.72	2.63	3/8	.44	1.62	1.00	1.82	1.03	2.35	.75	.17	7	Inch
5	43	CL-800-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-800-SHR-2		Steel	Black Oxide	800	5/16-18	.54	.72	2.63	3/8	.44	1.62	1.00	1.82	1.03	2.35	.75	.17	7	Inch
6	44	CL-800-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-800-SHR-2	Without Thread	Steel	Black Oxide	800	5/16-18	.54	.72	2.63	3/8	.44	1.62	1.00	1.82	1.03	2.35	.75	.17	7	Inch
7	45	CL-1000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-1000-SHR-1		Steel	Black Oxide	1000	3/8-16	.54	.72	2.63	3/8	.44	1.62	1.00	1.82	1.09	2.35	.75	.17	12	Inch
8	46	CL-1000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-1000-SHR-1	Without Thread	Steel	Black Oxide	1000	3/8-16	.54	.72	2.63	3/8	.44	1.62	1.00	1.82	1.09	2.35	.75	.17	12	Inch
9	47	CL-23301-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23301-SHR		Steel	Black Oxide	2500	1/2-13	1.07	.93	3.77	1/2	.70	2.40	1.49	2.58	1.43	3.31	1.25	.20	28	Inch
10	2	CL-2500-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-2500-SHR-1		Steel	Black Oxide	2500	1/2-13	.77	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
11	3	CL-2500-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-2500-SHR-1	Without Thread	Steel	Black Oxide	2500	1/2-13	.77	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
12	4	CL-2500-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-2500-SHR-2		Steel	Black Oxide	2500	1/2-13	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
13	5	CL-2500-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-2500-SHR-2	Without Thread	Steel	Black Oxide	2500	1/2-13	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
14	6	CL-2500-SHR-3	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-2500-SHR-3		Steel	Black Oxide	2500	1/2-13	1.27	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
15	7	CL-2500-SHR-3-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-2500-SHR-3	Without Thread	Steel	Black Oxide	2500	1/2-13	1.27	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.73	4.24	1.50	.16	28	Inch
16	8	CL-4000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-4000-SHR-1		Steel	Black Oxide	4000	5/8-11	.77	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
17	9	CL-4000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-4000-SHR-1	Without Thread	Steel	Black Oxide	4000	5/8-11	.77	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
18	10	CL-4000-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-4000-SHR-2		Steel	Black Oxide	4000	5/8-11	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
19	11	CL-4000-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-4000-SHR-2	Without Thread	Steel	Black Oxide	4000	5/8-11	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
20	13	CL-4000-SHR-3	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-4000-SHR-3		Steel	Black Oxide	4000	5/8-11	1.27	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
21	14	CL-4000-SHR-3-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-4000-SHR-3	Without Thread	Steel	Black Oxide	4000	5/8-11	1.27	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.86	4.24	1.50	.16	60	Inch
22	15	CL-5000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-5000-SHR-1		Steel	Black Oxide	5000	3/4-10	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.98	4.24	1.50	.16	100	Inch
23	16	CL-5000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-5000-SHR-1	Without Thread	Steel	Black Oxide	5000	3/4-10	1.02	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.98	4.24	1.50	.16	100	Inch
24	17	CL-5000-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-5000-SHR-2		Steel	Black Oxide	5000	3/4-10	1.52	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.98	4.24	1.50	.16	100	Inch
25	18	CL-5000-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-5000-SHR-2	Without Thread	Steel	Black Oxide	5000	3/4-10	1.52	1.23	4.77	3/4	.88	3.25	2.00	3.52	1.98	4.24	1.50	.16	100	Inch
26	19	CL-7000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-7000-SHR-1		Steel	Black Oxide	7000	3/4-10	1.03	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.47	5.80	2.37	.24	100	Inch
27	20	CL-7000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-7000-SHR-1	Without Thread	Steel	Black Oxide	7000	3/4-10	1.03	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.47	5.80	2.37	.24	100	Inch
28	21	CL-7000-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-7000-SHR-2		Steel	Black Oxide	7000	3/4-10	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.47	5.80	2.37	.24	100	Inch
29	22	CL-7000-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-7000-SHR-2	Without Thread	Steel	Black Oxide	7000	3/4-10	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.47	5.80	2.37	.24	100	Inch
30	24	CL-8000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-8000-SHR-1		Steel	Black Oxide	8000	7/8-9	1.03	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.60	5.80	2.37	.24	160	Inch
31	25	CL-8000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-8000-SHR-1	Without Thread	Steel	Black Oxide	8000	7/8-9	1.03	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.60	5.80	2.37	.24	160	Inch
32	26	CL-8000-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-8000-SHR-2		Steel	Black Oxide	8000	7/8-9	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.60	5.80	2.37	.24	160	Inch
33	27	CL-8000-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-8000-SHR-2	Without Thread	Steel	Black Oxide	8000	7/8-9	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.60	5.80	2.37	.24	160	Inch
34	28	CL-10000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-10000-SHR-1		Steel	Black Oxide	10000	1"-8	1.28	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
35	29	CL-10000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-10000-SHR-1	Without Thread	Steel	Black Oxide	10000	1"-8	1.28	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
36	30	CL-10000-SHR-2	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-10000-SHR-2		Steel	Black Oxide	10000	1"-8	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
37	31	CL-10000-SHR-2-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-10000-SHR-2	Without Thread	Steel	Black Oxide	10000	1"-8	1.53	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
38	32	CL-10000-SHR-3	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-10000-SHR-3		Steel	Black Oxide	10000	1"-8	2.28	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
39	33	CL-10000-SHR-3-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-10000-SHR-3	Without Thread	Steel	Black Oxide	10000	1"-8	2.28	1.72	6.55	1-1/16	1.40	4.94	3.00	5.06	2.72	5.80	2.37	.24	230	Inch
40	35	CL-15000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-15000-SHR-1		Steel	Black Oxide	15000	1-1/4"-7	1.89	2.11	8.73	1-1/4	1.75	6.00	3.76	6.50	3.36	7.75	3.20	.35	470	Inch
41	36	CL-15000-SHR-1-NOTHREAD	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Without Thread, Inch	CL-15000-SHR-1	Without Thread	Steel	Black Oxide	15000	1-1/4"-7	1.89	2.11	8.73	1-1/4	1.75	6.00	3.76	6.50	3.36	7.75	3.20	.35	470	Inch
42	37	CL-24000-SHR-1	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-24000-SHR-1		Steel	Black Oxide	24000	1-1/2"-6	2.70	2.81	12.47	1-3/4	2.25	8.00	4.87	8.55	4.36	11.12	4.20	.47	800	Inch
43	38	CL-23200-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23200-SHR		Steel	Black Oxide	30000	2"-4-1/2	2.96	2.81	12.47	1-3/4	2.25	8.00	4.87	8.55	5.36	11.12	4.20	.47	1100	Inch
44	39	CL-23503-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23503-SHR		Steel	Black Oxide	50000	2-1/2"-4	4.00	4.09	16.87	2-1/4	3.00	10.50	6.52	11.67	6.59	14.50	5.75	1.12	2100	Inch
45	40	CL-23501-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23501-SHR		Steel	Black Oxide	50000	2-1/2"-8	4.00	4.09	16.87	2-1/4	3.00	10.50	6.52	11.67	6.59	14.50	5.75	1.12	2100	Inch
46	41	CL-23600-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23600-SHR		Steel	Black Oxide	75000	3"-4	5.20	5.27	19.50	2-3/4	3.75	13.00	8.10	14.15	8.27	17.00	7.25	1.00	4300	Inch
47	42	CL-23701-SHR	Swivel Hoist Rings (Standard Ring), Black Oxide Finish, Inch	CL-23701-SHR		Steel	Black Oxide	100000	3-1/2"-4	7.00	6.06	22.09	3-1/4	4.00	14.50	8.60	15.90	9.56	19.25	7.75	1.09	6600	Inch

Product Description

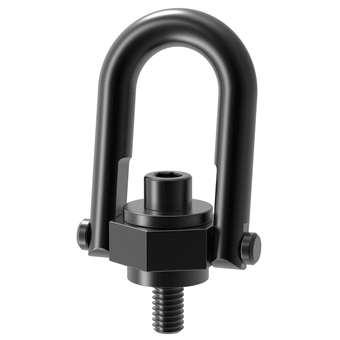

Many sizes now available with electroless-nickel finish!Carr Lane standard swivel hoist rings are the original safety-engineered hoist ring. These safety swivel hoist rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Standard swivel hoist rings feature a safety factor of 5:1. Carr Lane safety swivel hoist rings are available with inch or metric threads in load capacities up to 100,000 lbs, many with a choice of bolt length. Black oxide finish is standard for all sizes of safety swivel hoist rings, with popular sizes optionally available in electroless-nickel finish. This same design is also available in 300-series stainless steel, with a load rating equal to 50% of the alloy steel version (see Related Products below). Patent no. 3,297,293, and 4,705,422. Made in USA.
