Solid Handles – Square Design, Threaded (Stainless Steel), Metric

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane
Description	Solid Handles – Square Design, Threaded (Stainless Steel), Metric
Part Number	CLM-100-SH-S
Finish	Stainless Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Finish	HANDLE SIZE	A (mm)	B (mm)	C THREAD	THREAD PITCH (mm)	D DIA (mm)	E DIA (mm)	Measurement
1	1	CLM-100-SH-S	Solid Handles – Square Design, Threaded (Stainless Steel), Metric	CLM-100-SH-S		Stainless Steel	SIZE 1	38	7	M6	1	13	10	Metric
2	2	CLM-100-SH-S-NOTHREAD	Solid Handles – Square Design, Threaded (Stainless Steel), Without Thread, Metric	CLM-100-SH-S	Without Thread	Stainless Steel	SIZE 1	38	7	M6	1	13	10	Metric
3	3	CLM-200-SH-S	Solid Handles – Square Design, Threaded (Stainless Steel), Metric	CLM-200-SH-S		Stainless Steel	SIZE 2	51	11	M6	1	13	10	Metric
4	4	CLM-200-SH-S-NOTHREAD	Solid Handles – Square Design, Threaded (Stainless Steel), Without Thread, Metric	CLM-200-SH-S	Without Thread	Stainless Steel	SIZE 2	51	11	M6	1	13	10	Metric
5	5	CLM-300-SH-S	Solid Handles – Square Design, Threaded (Stainless Steel), Metric	CLM-300-SH-S		Stainless Steel	SIZE 3	64	14	M8	1.25	16	12	Metric
6	6	CLM-300-SH-S-NOTHREAD	Solid Handles – Square Design, Threaded (Stainless Steel), Without Thread, Metric	CLM-300-SH-S	Without Thread	Stainless Steel	SIZE 3	64	14	M8	1.25	16	12	Metric
7	7	CLM-400-SH-S	Solid Handles – Square Design, Threaded (Stainless Steel), Metric	CLM-400-SH-S		Stainless Steel	SIZE 4	83	17	M10	1.5	19	15	Metric
8	8	CLM-400-SH-S-NOTHREAD	Solid Handles – Square Design, Threaded (Stainless Steel), Without Thread, Metric	CLM-400-SH-S	Without Thread	Stainless Steel	SIZE 4	83	17	M10	1.5	19	15	Metric

Product Description

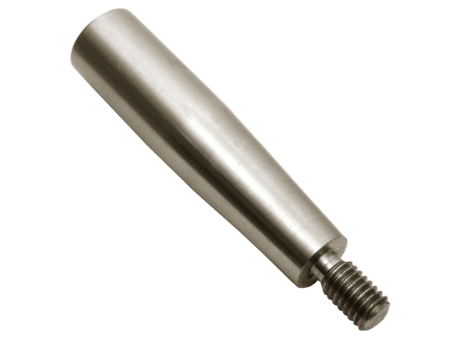

Modern square-design handle made of solid stainless steel, with a polished finish. Solid Handles are available in a total of five sizes. The square-design version shown here is available in the first four of the five sizes, with the following threads:

Size 1 1/4-20 (M6 in metric)

Size 2 1/4-20 (M6 in metric)

Size 3 5/16-18 (M8 in metric)

Size 4 3/8-16 (M10 in metric)
