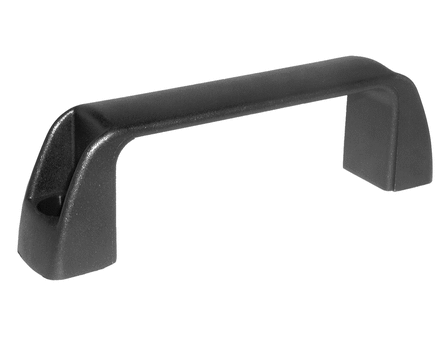

Pull Handles – Square Design, Counterbored (Thermoplastic)

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane Manufacturing
Description	Pull Handles – Square Design, Counterbored (Thermoplastic)
Manufacturer Part Number	CL-94-PHSC-4
Material	Thermoplastic

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	Base Part Number	Material	A	B	C	D SCREW DIA	E	F	G	H	Measurement
1	1	CL-94-PHSC-4	Pull Handles – Square Design, Counterbored (Thermoplastic)	CL-94-PHSC-4	Thermoplastic	3.68	4.41	1.18	1/4 or M6	.83	1.42	.24	.28	Universal
2	2	CL-117-PHSC-5	Pull Handles – Square Design, Counterbored (Thermoplastic)	CL-117-PHSC-5	Thermoplastic	4.61	5.47	1.34	5/16 or M8	.96	1.61	.24	.35	Universal
3	3	CL-132-PHSC-5	Pull Handles – Square Design, Counterbored (Thermoplastic)	CL-132-PHSC-5	Thermoplastic	5.20	6.14	1.46	5/16 or M8	1.06	1.77	.28	.35	Universal
4	4	CL-179-PHSC-5	Pull Handles – Square Design, Counterbored (Thermoplastic)	CL-179-PHSC-5	Thermoplastic	7.05	8.03	1.65	5/16 or M8	1.10	1.97	.31	.35	Universal

Product Description

Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. High-strength thermoplastic provides excellent durability. Textured non-slip, non-glare finish. Counterbored for mounting with two socket-head cap screws. Choice of four handle sizes.
