By Carr Lane Manufacturing

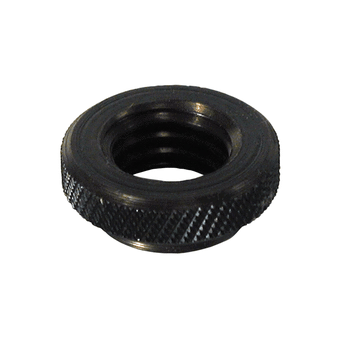

Knurled Check Nuts, Inch

Clamps & Accessories

Manufacturer	Carr Lane Manufacturing
Description	Knurled Check Nuts, Inch
Part Number	CL-1024-TSJN
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	Finish	A THREAD	B DIA (Inch)	C DIA (Inch)	D (Inch)	E (Inch)	Measurement
1	1	CL-1024-TSJN	Knurled Check Nuts, Inch	CL-1024-TSJN		Steel	Black Oxide	#10-24	3/4	1/2	1/4	3/16	Inch
2	7	CL-1024-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-1024-TSJN	Without Thread	Steel	Black Oxide	#10-24	3/4	1/2	1/4	3/16	Inch
3	8	CL-1032-TSJN	Knurled Check Nuts, Inch	CL-1032-TSJN		Steel	Black Oxide	#10-32	3/4	1/2	1/4	3/16	Inch
4	9	CL-1032-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-1032-TSJN	Without Thread	Steel	Black Oxide	#10-32	3/4	1/2	1/4	3/16	Inch
5	10	CL-1420-TSJN	Knurled Check Nuts, Inch	CL-1420-TSJN		Steel	Black Oxide	1/4-20	3/4	1/2	1/4	3/16	Inch
6	11	CL-1420-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-1420-TSJN	Without Thread	Steel	Black Oxide	1/4-20	3/4	1/2	1/4	3/16	Inch
7	12	CL-51618-TSJN	Knurled Check Nuts, Inch	CL-51618-TSJN		Steel	Black Oxide	5/16-18	3/4	1/2	5/16	1/4	Inch
8	13	CL-51618-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-51618-TSJN	Without Thread	Steel	Black Oxide	5/16-18	3/4	1/2	5/16	1/4	Inch
9	14	CL-3816-TSJN	Knurled Check Nuts, Inch	CL-3816-TSJN		Steel	Black Oxide	3/8-16	3/4	1/2	5/16	1/4	Inch
10	2	CL-3816-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-3816-TSJN	Without Thread	Steel	Black Oxide	3/8-16	3/4	1/2	5/16	1/4	Inch
11	3	CL-1213-TSJN	Knurled Check Nuts, Inch	CL-1213-TSJN		Steel	Black Oxide	1/2-13	1	3/4	3/8	1/4	Inch
12	4	CL-1213-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-1213-TSJN	Without Thread	Steel	Black Oxide	1/2-13	1	3/4	3/8	1/4	Inch
13	5	CL-5811-TSJN	Knurled Check Nuts, Inch	CL-5811-TSJN		Steel	Black Oxide	5/8-11	1	3/4	3/8	1/4	Inch
14	6	CL-5811-TSJN-NOTHREAD	Knurled Check Nuts, Without Thread, Inch	CL-5811-TSJN	Without Thread	Steel	Black Oxide	5/8-11	1	3/4	3/8	1/4	Inch

Product Description

Multipurpose lock nut for finger tightening. Available in thread sizes from #10-32 to 5/8-11 (M5 to M16 in metric). Made in USA.
