Headless Carr Lock® Clamps, Primary Inch

Jig & Fixture Bases

Manufacturer	Carr Lane Manufacturing
Description	Headless Carr Lock® Clamps, Primary Inch
Part Number	CL-13-HCLC-1

CAD models

Request for quotation

Product selection

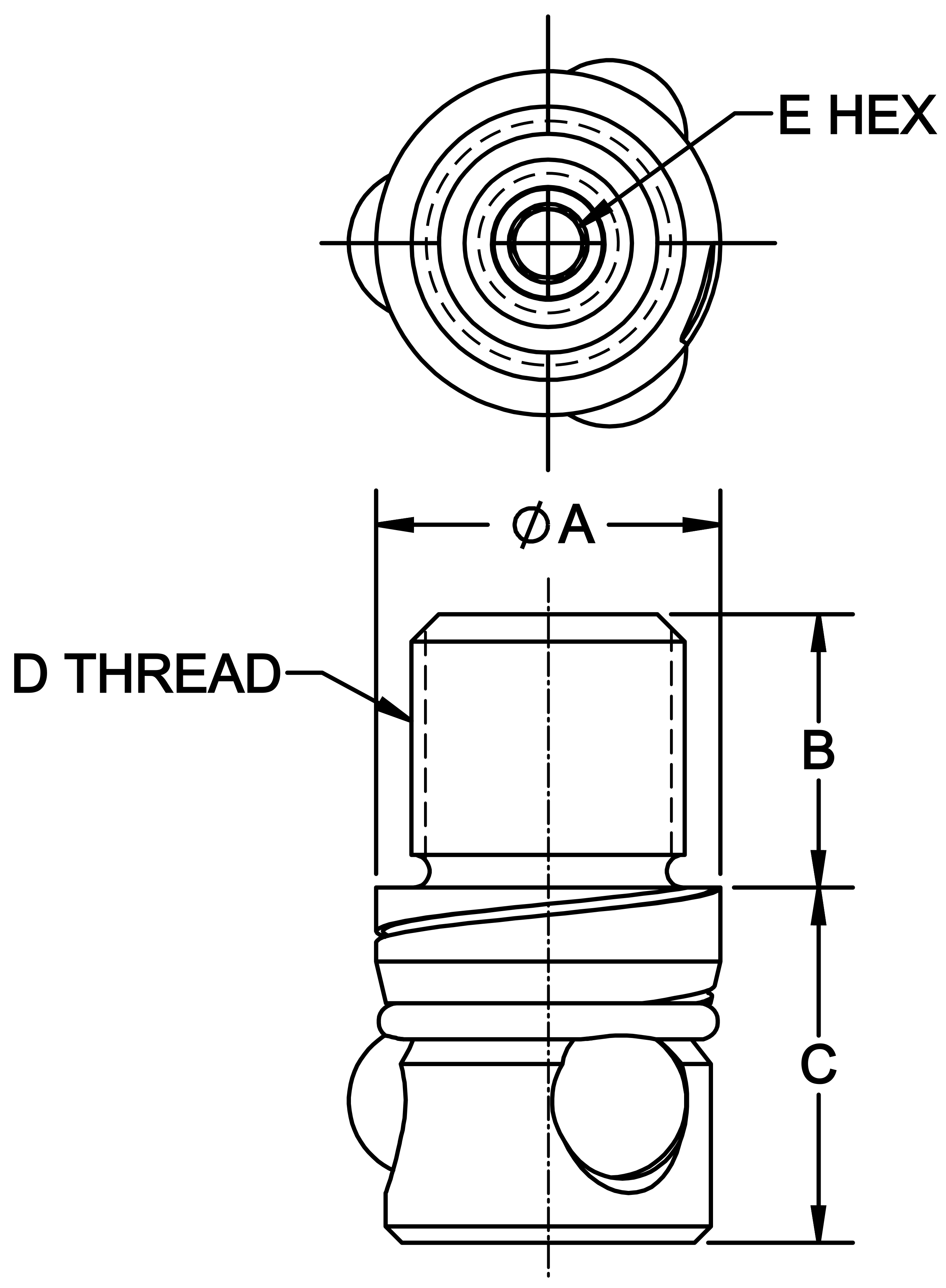

Index	Selector	Part Number	Base Part Number	Option	A SHANK DIA NOMINAL	A SHANK DIA ACTUAL	B	C	D THREAD	E HEX	MAX SCREW TORQUE (ft-lbs)	Measurement
1	1	CL-13-HCLC-1	CL-13-HCLC-1		13mm	.5116/.5111	.38	.58	3/8-24	3/32	1	Inch
2	2	CL-13-HCLC-1-NOTHREAD	CL-13-HCLC-1	Without Thread	13mm	.5116/.5111	.38	.58	3/8-24	3/32	1	Inch
3	3	CL-16-HCLC-1	CL-16-HCLC-1		16mm	.6297/.6292	.50	.65	1/2-20	1/8	2	Inch
4	4	CL-16-HCLC-1-NOTHREAD	CL-16-HCLC-1	Without Thread	16mm	.6297/.6292	.50	.65	1/2-20	1/8	2	Inch
5	5	CL-20-HCLC-1	CL-20-HCLC-1		20mm	.7872/.7867	.75	.78	3/4-16	1/8	3	Inch
6	6	CL-20-HCLC-1-NOTHREAD	CL-20-HCLC-1	Without Thread	20mm	.7872/.7867	.75	.78	3/4-16	1/8	3	Inch

Product Description

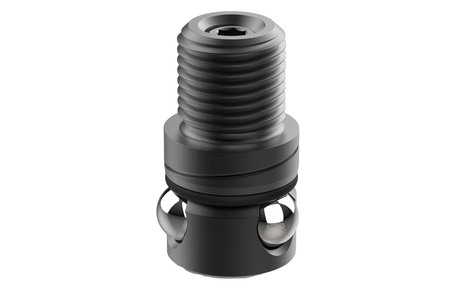

The Headless Carr Lock® System allows accurately locating and clamping at the same time, with just the turn of a hex wrench. Ideal for mounting quick-change tooling on a subplate while taking minimal real estate on the top of your fixture. The Headless Carr Lock® Clamp comes in two variants, primary (-1) and secondary (-2). The primary clamp is used to accurately locate your plate while the looser fit on the secondary clamp reduces binding. Made in USA, available in 13mm, 16mm, and 20mm Shank Diameters.
