Hand Knobs (Cast Iron), Tapped, Metric

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane Manufacturing
Description	Hand Knobs (Cast Iron), Tapped, Metric
Part Number	CLM-80-HK-8
Material	Cast Iron
Finish	Zinc Plated

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Material	Finish	D DIA (mm)	A DIA (mm)	B (mm)	C (mm)	H (mm)	E THREAD	THREAD PITCH (mm)	E THREAD DEPTH (mm)	Measurement
1	1	CLM-80-HK-8	Hand Knobs (Cast Iron), Tapped, Metric	CLM-80-HK-8	Cast Iron	Zinc Plated	29	14	8	8	19	M6	1	13	Metric
2	3	CLM-10-HK-2	Hand Knobs (Cast Iron), Tapped, Metric	CLM-10-HK-2	Cast Iron	Zinc Plated	44	19	13	10	29	M6	1	22	Metric
3	4	CLM-20-HK-2	Hand Knobs (Cast Iron), Tapped, Metric	CLM-20-HK-2	Cast Iron	Zinc Plated	44	19	13	10	29	M8	1.25	22	Metric
4	5	CLM-20-HK-4	Hand Knobs (Cast Iron), Tapped, Metric	CLM-20-HK-4	Cast Iron	Zinc Plated	54	25	16	11	35	M8	1.25	25	Metric
5	6	CLM-30-HK-4	Hand Knobs (Cast Iron), Tapped, Metric	CLM-30-HK-4	Cast Iron	Zinc Plated	54	25	16	11	35	M10	1.5	25	Metric
6	7	CLM-40-HK-4	Hand Knobs (Cast Iron), Tapped, Metric	CLM-40-HK-4	Cast Iron	Zinc Plated	54	25	16	11	35	M12	1.75	25	Metric
7	8	CLM-90-HK-9	Hand Knobs (Cast Iron), Tapped, Metric	CLM-90-HK-9	Cast Iron	Zinc Plated	64	29	25	13	42	M12	1.75	32	Metric
8	9	CLM-100-HK-10	Hand Knobs (Cast Iron), Tapped, Metric	CLM-100-HK-10	Cast Iron	Zinc Plated	64	29	25	13	42	M16	2	32	Metric
9	10	CLM-50-HK-6	Hand Knobs (Cast Iron), Tapped, Metric	CLM-50-HK-6	Cast Iron	Zinc Plated	70	35	19	13	38	M16	2	25	Metric
10	2	CLM-60-HK-6	Hand Knobs (Cast Iron), Tapped, Metric	CLM-60-HK-6	Cast Iron	Zinc Plated	70	35	19	13	38	M20	2.5	25	Metric

Product Description

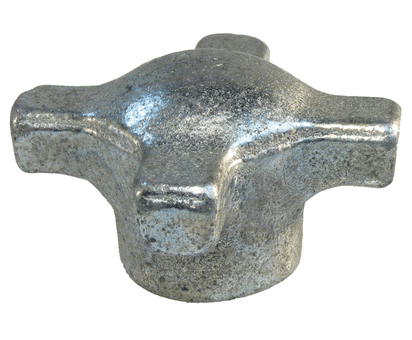

Classic, easy-to-grip cast iron clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Choice of five knob sizes, each available blank, tapped, tapped through, or reamed. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric) and reamed hole sizes from 1/4 to 3/4 (6mm to 20mm in metric). Made in USA.
