Extruded Hand Knob, Metric

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane Manufacturing

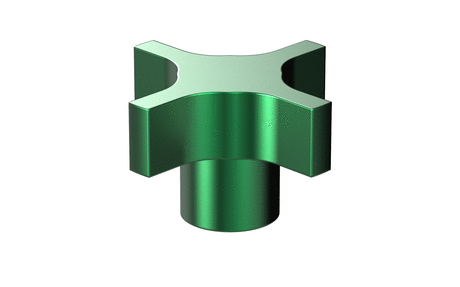

Description	Extruded Hand Knob, Metric
Part Number	CLM-6R-HKE-00

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	A DIA (mm)	B DIA (mm)	C (mm)	D (mm)	E DIA (mm)	E DEPTH (mm)	Measurement
1	1	CLM-6R-HKE-00	Extruded Hand Knob, Metric	CLM-6R-HKE-00	25.5	13	22	12.5	6	12.5	Metric
2	2	CLM-6R-HKE-20	Extruded Hand Knob, Metric	CLM-6R-HKE-20	44.5	19	28.5	15	6	19	Metric
3	3	CLM-8R-HKE-20	Extruded Hand Knob, Metric	CLM-8R-HKE-20	44.5	19	28.5	15	8	19	Metric
4	4	CLM-10R-HKE-30	Extruded Hand Knob, Metric	CLM-10R-HKE-30	51	20.5	35	19	10	25.5	Metric
5	5	CLM-12R-HKE-30	Extruded Hand Knob, Metric	CLM-12R-HKE-30	51	20.5	35	19	12	25.5	Metric
6	6	CLM-12R-HKE-40	Extruded Hand Knob, Metric	CLM-12R-HKE-40	63.5	25.5	38	20	12	32	Metric
7	7	CLM-16R-HKE-40	Extruded Hand Knob, Metric	CLM-16R-HKE-40	63.5	25.5	38	20	16	32	Metric
8	8	CLM-20R-HKE-40	Extruded Hand Knob, Metric	CLM-20R-HKE-40	63.5	25.5	38	20	20	32	Metric

Product Description

Extruded, easy-to-grip aluminum clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Extruded hand knobs available blank, tapped, tapped through, or reamed. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric) and reamed hole sizes from 1/4 to 3/4 (6mm to 20mm in metric).
