Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Metric

Clamps & Accessories

Manufacturer	Carr Lane
Description	Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Metric
Part Number	CLM-842-GCSA-4
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

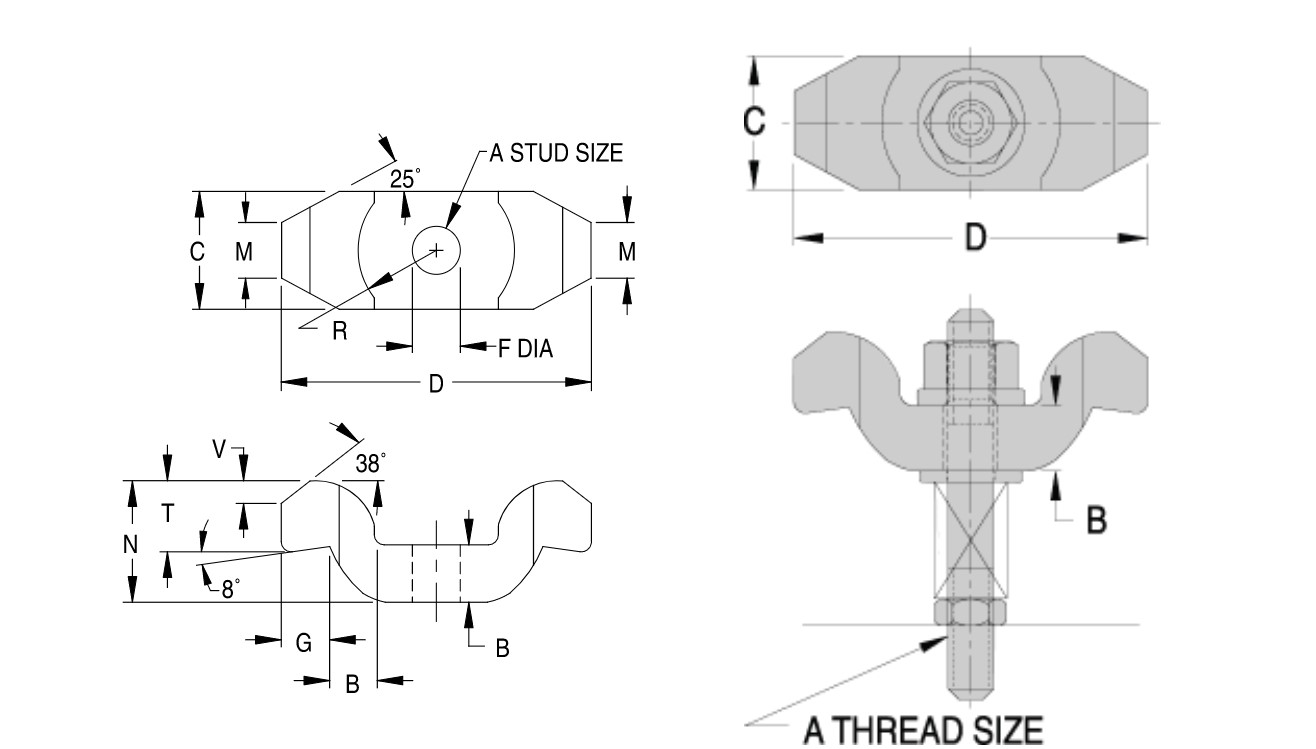

Index	Selector	Part Number	Description	Base Part Number	Option	Material	Finish	A THREAD (mm)	THREAD PITCH (mm)	B (mm)	C (mm)	D (mm)	CLAMP STRAP	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	HAND KNOB	SPHERICAL WASHER	Measurement
1	1	CLM-842-GCSA-4	Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Metric	CLM-842-GCSA-4		Steel	Black Oxide	M12	1.75	20	40	100	CL-842-GCS	CL-9-SPG	CL-2-FW	CLM-12X95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW	Metric
2	2	CLM-842-GCSA-4-NOTHREAD	Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Without Thread, Metric	CLM-842-GCSA-4	Without Thread	Steel	Black Oxide	M12	1.75	20	40	100	CL-842-GCS	CL-9-SPG	CL-2-FW	CLM-12X95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW	Metric
3	3	CLM-1042-GCSA-4	Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Metric	CLM-1042-GCSA-4		Steel	Black Oxide	M16	2	20	40	100	CL-842-GCS	CL-11-SPG	CL-3-FW	CLM-16X110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW	Metric
4	4	CLM-1042-GCSA-4-NOTHREAD	Double-End Gooseneck Clamp Straps (Steel), Assembly with Hand Knob & Spherical Washer, Without Thread, Metric	CLM-1042-GCSA-4	Without Thread	Steel	Black Oxide	M16	2	20	40	100	CL-842-GCS	CL-11-SPG	CL-3-FW	CLM-16X110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW	Metric

Product Description

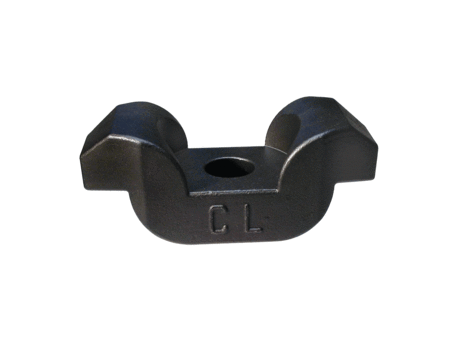

Gooseneck version of our Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90º for clear loading. Available in one clamp size that fits stud sizes 1/2-13 and 5/8-11 (M12 and M16 in metric). Made in USA.

This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are:

-1 Assembly with Spherical Nut & Washer

-2 Assembly with Flange Nut

-4 Assembly with Hand Knob & Spherical Washer

-5 Assembly with Acorn Nut & Spherical Washer
