CL-50-SPC Series (100 lbs), Stainless Steel, Inch

Toggle Clamps

Manufacturer	Carr Lane Manufacturing
Description	CL-50-SPC Series (100 lbs), Stainless Steel, Inch
Part Number	CL-50-SPC-S
Material	Stainless Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	DESCRIPTION	TAPPED HOLE IN PLUNGER	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)	Measurement
1	1	CL-50-SPC-S	CL-50-SPC Series (100 lbs), Stainless Steel, Inch	CL-50-SPC-S		Stainless Steel	Tapped Plunger, Flanged Base	#8-32	100	.2	Inch
2	2	CL-50-SPC-S-CLAMPED-NOTHREAD	CL-50-SPC Series (100 lbs), Stainless Steel, Clamped without Thread, Inch	CL-50-SPC-S	Clamped without Thread	Stainless Steel	Tapped Plunger, Flanged Base	#8-32	100	.2	Inch
3	3	CL-50-SPC-S-CLAMPED	CL-50-SPC Series (100 lbs), Stainless Steel, Clamped, Inch	CL-50-SPC-S	Clamped	Stainless Steel	Tapped Plunger, Flanged Base	#8-32	100	.2	Inch
4	4	CL-50-SPC-S-NOTHREAD	CL-50-SPC Series (100 lbs), Stainless Steel, Without Thread, Inch	CL-50-SPC-S	Without Thread	Stainless Steel	Tapped Plunger, Flanged Base	#8-32	100	.2	Inch

Product Description

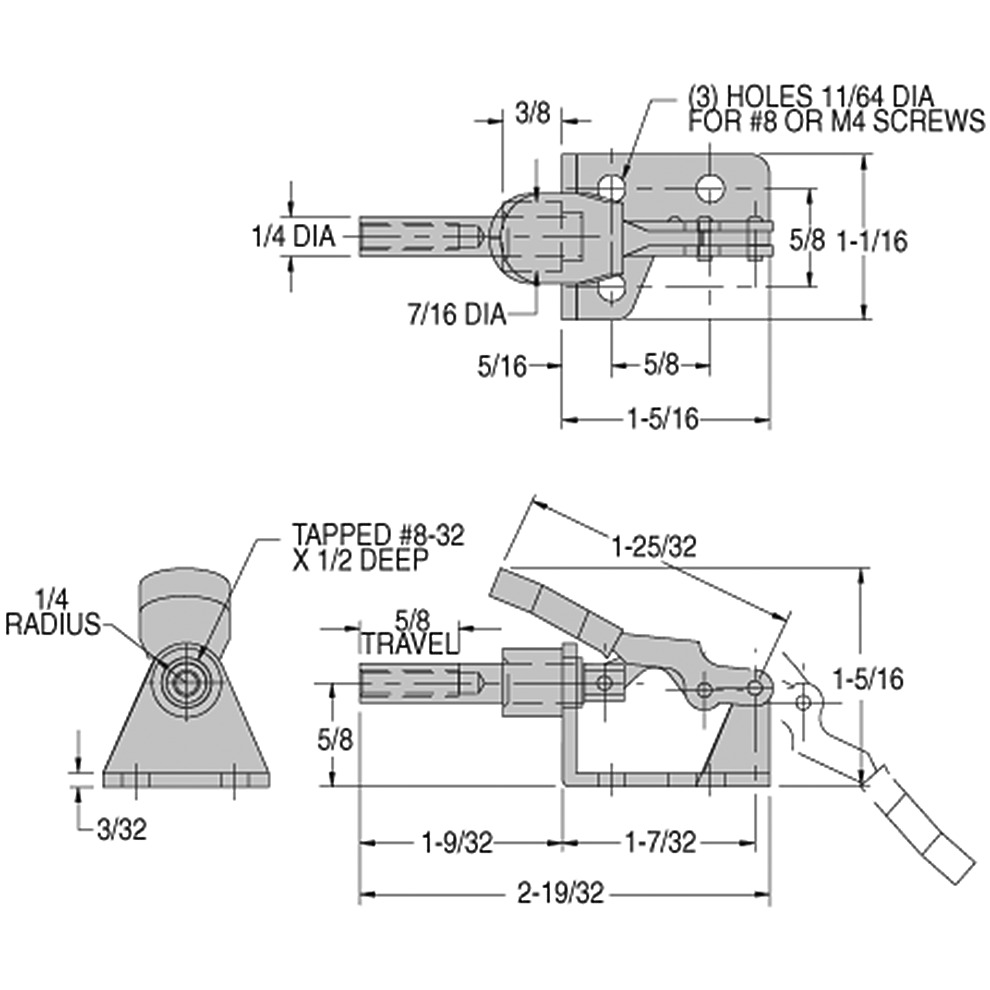

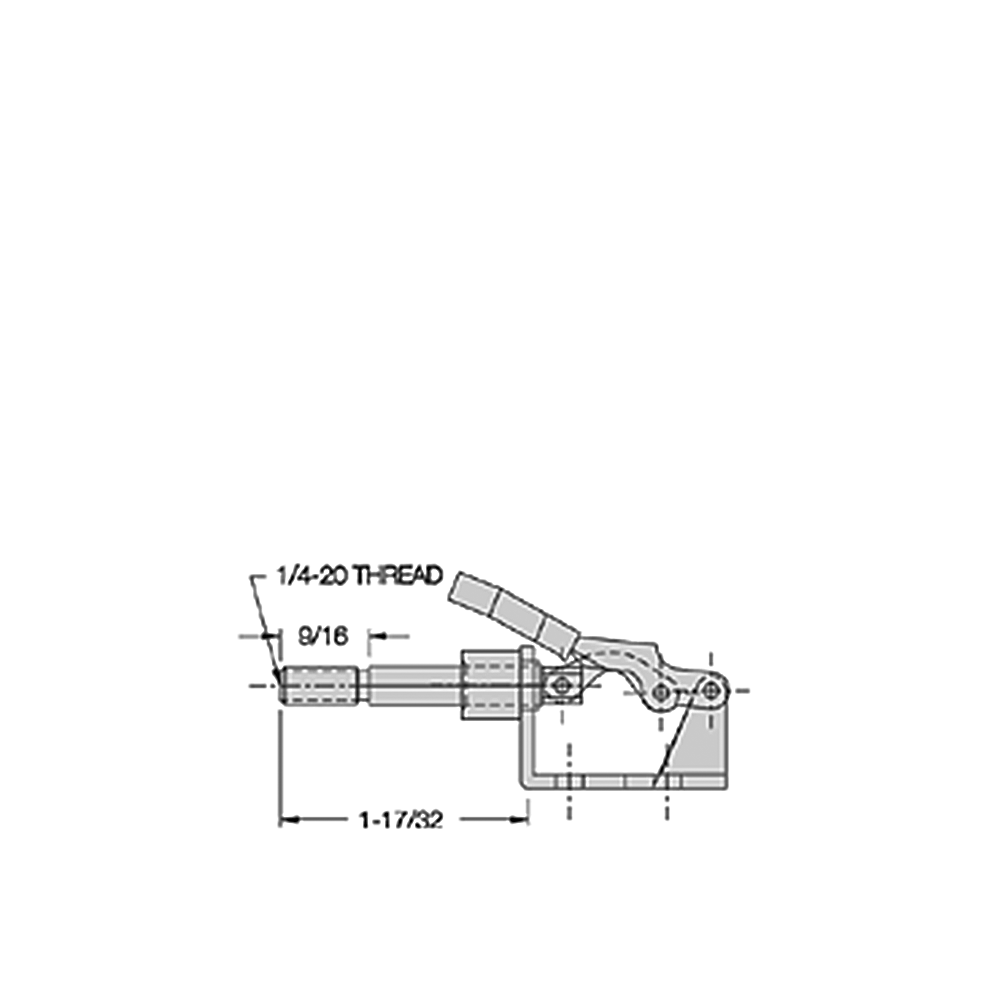

CL-50-SPC Tapped Plunge. Miniature plunger clamp, perfect for electronics fixturing and other light-duty applications. Locks in extended or retracted position. 5/8" plunger travel. Choice of #8-32 tapped plunger (M4 in metric) or 1/4-20 externally threaded plunger. Available in in steel or stainless steel. 100 lbs holding capacity. Made in USA.

Documentation

Product Page

Product Catalog
