CL-450-VTC Series (500 lbs), Steel

Toggle Clamps

Manufacturer	Carr Lane Manufacturing
Description	CL-450-VTC Series (500 lbs), Steel
Part Number	CL-450-VTC
Material	Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)	Measurement
1	1	CL-450-VTC	CL-450-VTC Series (500 lbs), Steel	CL-450-VTC		Steel	Open Arm, Flanged Base	500	.8	Universal
2	2	CL-450-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-450-VTC	Clamped	Steel	Open Arm, Flanged Base	500	.8	Universal
3	3	CL-451-VTC	CL-450-VTC Series (500 lbs), Steel	CL-451-VTC		Steel	Open Arm, Straight Base	500	.8	Universal
4	4	CL-451-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-451-VTC	Clamped	Steel	Open Arm, Straight Base	500	.8	Universal
5	5	CL-452-VTC	CL-450-VTC Series (500 lbs), Steel	CL-452-VTC		Steel	Open Arm, Flanged Base, T Handle	500	.8	Universal
6	6	CL-452-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-452-VTC	Clamped	Steel	Open Arm, Flanged Base, T Handle	500	.8	Universal
7	7	CL-453-VTC	CL-450-VTC Series (500 lbs), Steel	CL-453-VTC		Steel	Long Open Arm, Flanged Base	500	.8	Universal
8	8	CL-453-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-453-VTC	Clamped	Steel	Long Open Arm, Flanged Base	500	.8	Universal
9	9	CL-350-VTC	CL-450-VTC Series (500 lbs), Steel	CL-350-VTC		Steel	Solid Arm, Flanged Base	500	.8	Universal
10	10	CL-350-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-350-VTC	Clamped	Steel	Solid Arm, Flanged Base	500	.8	Universal
11	11	CL-351-VTC	CL-450-VTC Series (500 lbs), Steel	CL-351-VTC		Steel	Solid Arm, Straight Base	500	.8	Universal
12	12	CL-351-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-351-VTC	Clamped	Steel	Solid Arm, Straight Base	500	.8	Universal
13	13	CL-352-VTC	CL-450-VTC Series (500 lbs), Steel	CL-352-VTC		Steel	Solid Arm, Flanged Base, T Handle	500	.8	Universal
14	14	CL-352-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-352-VTC	Clamped	Steel	Solid Arm, Flanged Base, T Handle	500	.8	Universal
15	15	CL-353-VTC	CL-450-VTC Series (500 lbs), Steel	CL-353-VTC		Steel	Long Open Arm, Flanged Base	500	.8	Universal
16	16	CL-353-VTC-CLAMPED	CL-450-VTC Series (500 lbs), Steel, Clamped	CL-353-VTC	Clamped	Steel	Long Open Arm, Flanged Base	500	.8	Universal

Product Description

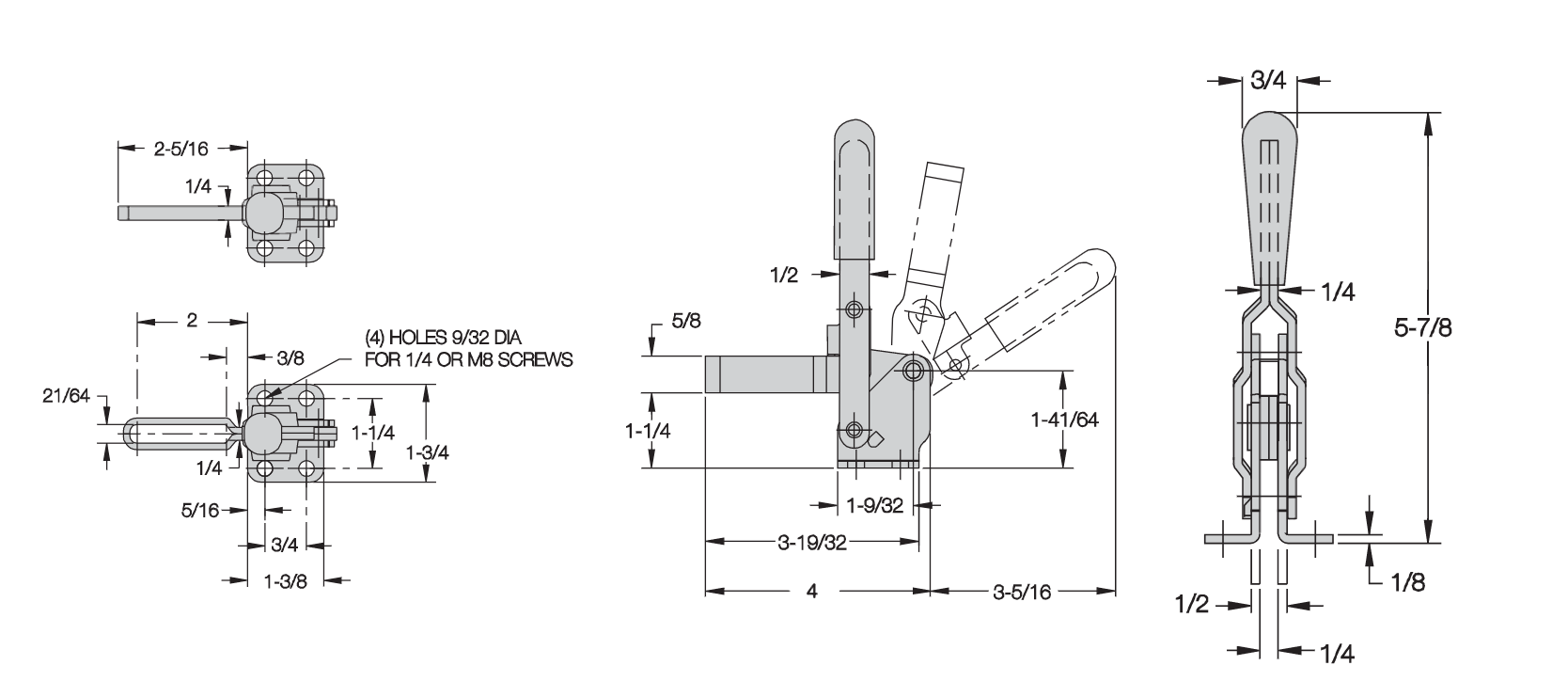

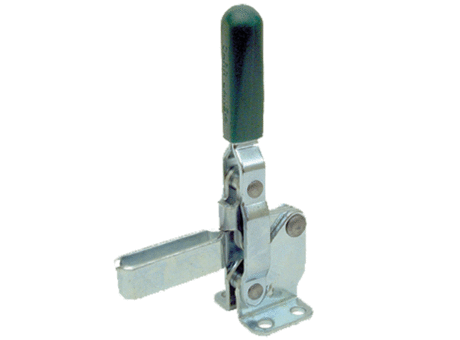

CL-450-VTC

Open Arm, Flanged Base

Our most popular wide-opening clamp, available in many configurations. Arm opens 100° while handle moves 69°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Extra-long arms are also available. Choice of flanged base or straight base. Available in in steel or stainless steel. Optionally available with our safety-lock feature, and in an air-powered version. 500 lbs holding capacity. Made in USA.
