CL-250-TPC Series (300 lbs), Steel, Inch

Toggle Clamps

Manufacturer	Carr Lane Manufacturing
Description	CL-250-TPC Series (300 lbs), Steel, Inch
Manufacturer Part Number	CL-250-TPC
Material	Steel
Finish	Zinc Plated

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	Base Part Number	Option	Material	Finish	DESCRIPTION	TAPPED HOLE IN PLUNGER	BODY THREAD	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)	Measurement
1	1	CL-250-TPC	CL-250-TPC Series (300 lbs), Steel, Inch	CL-250-TPC		Steel	Zinc Plated	Tapped Plunger, Threaded Body	5/16-18	3/4-16	300	.7	Inch
2	2	CL-250-TPC-CLAMPED-NOTHREAD	CL-250-TPC Series (300 lbs), Steel, Clamped without Thread, Inch	CL-250-TPC	Clamped without Thread	Steel	Zinc Plated	Tapped Plunger, Threaded Body	5/16-18	3/4-16	300	.7	Inch
3	3	CL-250-TPC-CLAMPED	CL-250-TPC Series (300 lbs), Steel, Clamped, Inch	CL-250-TPC	Clamped	Steel	Zinc Plated	Tapped Plunger, Threaded Body	5/16-18	3/4-16	300	.7	Inch
4	4	CL-250-TPC-NOTHREAD	CL-250-TPC Series (300 lbs), Steel, Without Thread, Inch	CL-250-TPC	Without Thread	Steel	Zinc Plated	Tapped Plunger, Threaded Body	5/16-18	3/4-16	300	.7	Inch

Product Description

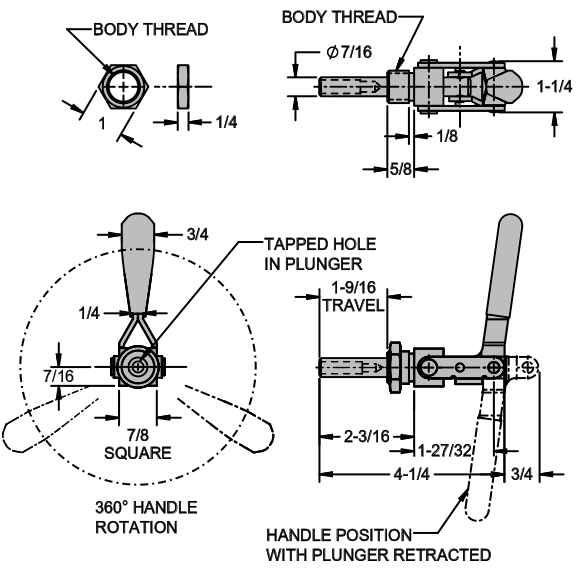

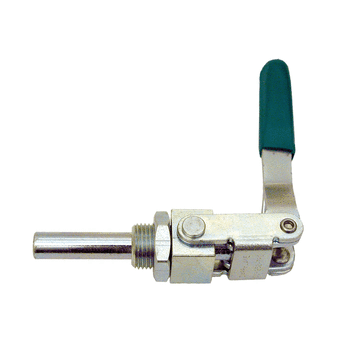

CL-250-TPC, Tapped Plunger, Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 3/4"-diameter drilled hole or a 3/4-16 tapped hole (M20x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 1-1/2" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric). Optionally available with our patented self-adjusting plunger (see Related Products below). 300 lbs holding capacity.
