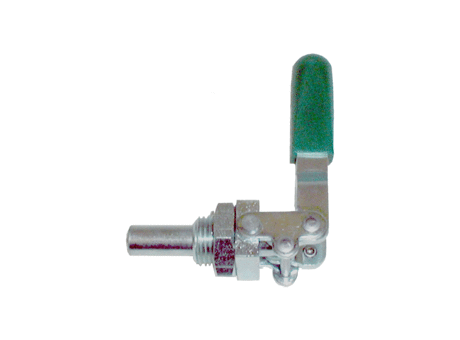

CL-150-TPC Series (200 lbs), Stainless Steel, Inch

Toggle Clamps

Manufacturer	Carr Lane Manufacturing
Description	CL-150-TPC Series (200 lbs), Stainless Steel, Inch
Part Number	CL-150-TPC-S
Material	Stainless Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	DESCRIPTION	TAPPED HOLE IN PLUNGER	BODY THREAD	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)	Measurement
1	1	CL-150-TPC-S	CL-150-TPC Series (200 lbs), Stainless Steel, Inch	CL-150-TPC-S		Stainless Steel	Tapped Plunger, Threaded Body	1/4-20	5/8-18	200	.4	Inch
2	2	CL-150-TPC-S-CLAMPED	CL-150-TPC Series (200 lbs), Stainless Steel, Clamped, Inch	CL-150-TPC-S	Clamped	Stainless Steel	Tapped Plunger, Threaded Body	1/4-20	5/8-18	200	.4	Inch
3	3	CL-150-TPC-S-CLAMPED-NOTHREAD	CL-150-TPC Series (200 lbs), Stainless Steel, Clamped without Thread, Inch	CL-150-TPC-S	Clamped without Thread	Stainless Steel	Tapped Plunger, Threaded Body	1/4-20	5/8-18	200	.4	Inch
4	4	CL-150-TPC-S-NOTHREAD	CL-150-TPC Series (200 lbs), Stainless Steel, Without Thread, Inch	CL-150-TPC-S	Without Thread	Stainless Steel	Tapped Plunger, Threaded Body	1/4-20	5/8-18	200	.4	Inch

Product Description

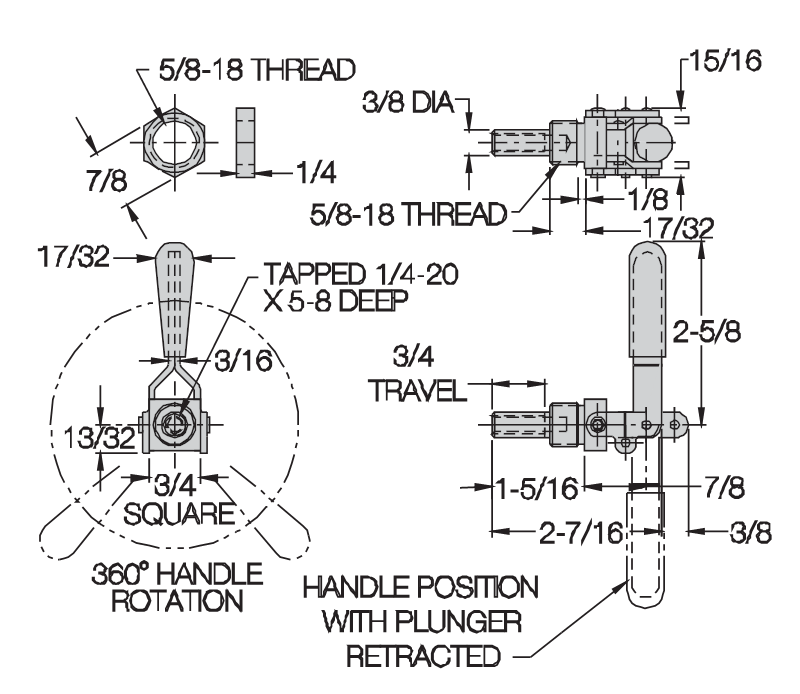

CL-150-TPC

Tapped Plunger

Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 5/8"-diameter drilled hole or a 5/8-18 tapped hole (M16x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 3/4" plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). 200 lbs holding capacity. Made in USA.

Documentation

Product Page

Product Catalog
