Carr Lock Fixture Plates (16 x 20), Inch

Jig & Fixture Bases

Manufacturer	Carr Lane
Description	Carr Lock® Fixture Plates (16 x 20), Inch
Part Number	CL-1620-00-CLFP
Material	Aluminum
PLATE SIZE (Inch)	16 x 20

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Material	PLATE SIZE (Inch)	PLATE THICKNESS (Inch)	REQUIRES CARR LOCK CLAMPS	CARR LOCK CLAMP SPACING (Inch)	Measurement
1	1	CL-1620-00-CLFP	Carr Lock® Fixture Plates (16 x 20), Inch	CL-1620-00-CLFP	Aluminum	16 x 20	.750	(4) CL-20-CLC-0.75	12 x 16	Inch

Product Description

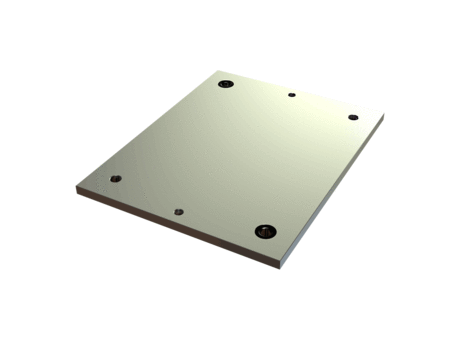

Carr Lock(r) Fixture Plates are precision-machined MIC-6 cast aluminum plates available in a wide range of standard sizes to use as a base for building quick-change fixtures. The 16 x 20 fixture plate shown here is .750" thick and has four locating/mounting holes for 20mm Carr Lock(r) Clamps. Made in USA.
