Bullet-Nose Dowels, Metric

Locators

Manufacturer	Carr Lane
Description	Bullet-Nose Dowels, Metric
Part Number	CLM-60-BND
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Material	Finish	A HEAD DIA NOMINAL (mm)	A HEAD DIA ACTUAL (mm)	B SHANK DIA NOMINAL (mm)	B SHANK DIA ACTUAL (mm)	C DIA (mm)	D (mm)	E (mm)	F (mm)	G DIA (mm)	Measurement
1	1	CLM-60-BND	Bullet-Nose Dowels, Metric	CLM-60-BND	Steel	Black Oxide	6	5.997	6	6.025	7	12	3	22	3	Metric
2	2	CLM-80-BND	Bullet-Nose Dowels, Metric	CLM-80-BND	Steel	Black Oxide	8	7.997	8	8.025	9	12	4	23	4	Metric
3	3	CLM-100-BND	Bullet-Nose Dowels, Metric	CLM-100-BND	Steel	Black Oxide	10	9.997	10	10.025	11	12	5	25	5	Metric
4	4	CLM-120-BND	Bullet-Nose Dowels, Metric	CLM-120-BND	Steel	Black Oxide	12	11.997	12	12.025	13	12	5	27	6	Metric

Product Description

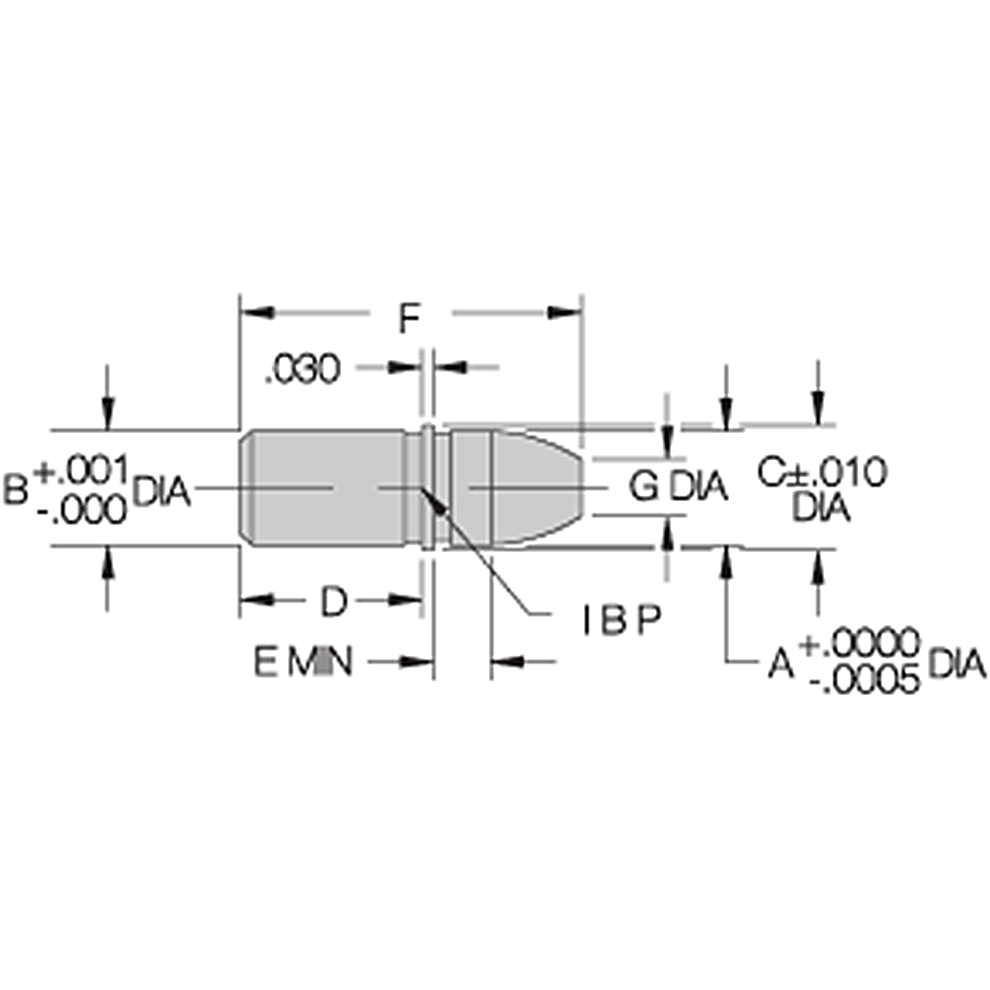

Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin's head and shank diameters are concentric to within .0005" TIR. Available in pin diameters 1/4, 5/16, 3/8, and 1/2" (6, 8, 10, and 12mm in metric). Made in USA.
