Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane
Description	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch
Part Number	CL-520-BHSB
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Option	Material	Finish	A THREAD	B LENGTH (Inch)	Measurement
1	1	CL-520-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-520-BHSB		Steel	Black Oxide	5/16-18	2	Inch
2	2	CL-520-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-520-BHSB	Without Thread	Steel	Black Oxide	5/16-18	2	Inch
3	3	CL-530-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-530-BHSB		Steel	Black Oxide	5/16-18	3	Inch
4	4	CL-530-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-530-BHSB	Without Thread	Steel	Black Oxide	5/16-18	3	Inch
5	5	CL-620-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-620-BHSB		Steel	Black Oxide	3/8-16	2	Inch
6	6	CL-620-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-620-BHSB	Without Thread	Steel	Black Oxide	3/8-16	2	Inch
7	7	CL-630-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-630-BHSB		Steel	Black Oxide	3/8-16	3	Inch
8	8	CL-630-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-630-BHSB	Without Thread	Steel	Black Oxide	3/8-16	3	Inch
9	9	CL-640-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-640-BHSB		Steel	Black Oxide	3/8-16	4	Inch
10	10	CL-640-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-640-BHSB	Without Thread	Steel	Black Oxide	3/8-16	4	Inch
11	11	CL-820-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-820-BHSB		Steel	Black Oxide	1/2-13	2	Inch
12	12	CL-820-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-820-BHSB	Without Thread	Steel	Black Oxide	1/2-13	2	Inch
13	13	CL-830-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-830-BHSB		Steel	Black Oxide	1/2-13	3	Inch
14	14	CL-830-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-830-BHSB	Without Thread	Steel	Black Oxide	1/2-13	3	Inch
15	15	CL-840-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-840-BHSB		Steel	Black Oxide	1/2-13	4	Inch
16	16	CL-840-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-840-BHSB	Without Thread	Steel	Black Oxide	1/2-13	4	Inch
17	17	CL-1030-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-1030-BHSB		Steel	Black Oxide	5/8-11	3	Inch
18	18	CL-1030-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-1030-BHSB	Without Thread	Steel	Black Oxide	5/8-11	3	Inch
19	19	CL-1040-BHSB	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Inch	CL-1040-BHSB		Steel	Black Oxide	5/8-11	4	Inch
20	20	CL-1040-BHSB-NOTHREAD	Bar-Handle Screw Clamps, Screw Clamp with Type B Large Foot – Steel, Without Thread, Inch	CL-1040-BHSB	Without Thread	Steel	Black Oxide	5/8-11	4	Inch

Product Description

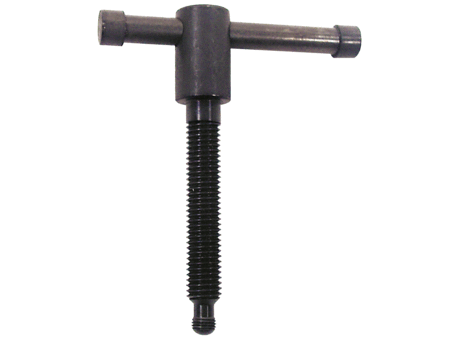

Heavy-duty screw clamp with a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. These screw clamps accept all standard types of swivel feet. Available in body-thread sizes from 5/16-18 to 5/8-11 (M8 to M16 in metric), each in a choice of several lengths. Available in steel or stainless steel. Made in USA.

Documentation

Product Page

Product Catalog
