Bar-Handle Nuts, Steel, Metric

Handles, Knobs & Screw Clamps

Manufacturer	Carr Lane
Description	Bar-Handle Nuts, Steel, Metric
Part Number	CLM-10-BHN
Material	Steel
Finish	Black Oxide

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Base Part Number	Material	Finish	A THREAD	THREAD PITCH (mm)	B (mm)	C (mm)	D DIA (mm)	E (mm)	F DIA (mm)	G DIA (mm)	H (mm)	J (mm)	Measurement
1	1	CLM-10-BHN	Bar-Handle Nuts, Steel, Metric	CLM-10-BHN	Steel	Black Oxide	M10	1.5	20	60	19	80	8	11	7	7	Metric
2	2	CLM-12-BHN	Bar-Handle Nuts, Steel, Metric	CLM-12-BHN	Steel	Black Oxide	M12	1.75	25	70	20	100	10	12.5	9	8	Metric
3	3	CLM-16-BHN	Bar-Handle Nuts, Steel, Metric	CLM-16-BHN	Steel	Black Oxide	M16	2	35	85	25	120	12.5	16	10	10	Metric

Product Description

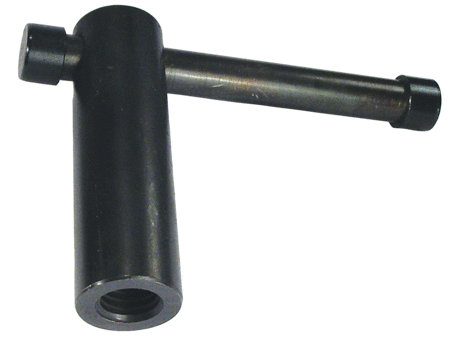

Extension nut with a deep tapped hole and a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. Available with tapped-hole sizes from 3/8-16 to 5/8-11 (M10 to M16 in metric), in steel or stainless steel. Made in USA.
