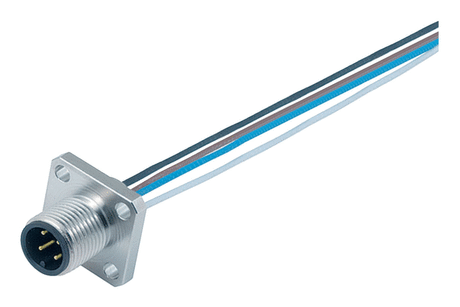

M12 Square male panel mount connector, Contacts: 4, unshielded, single wires, IP40, UL, Square

M12-A, series 763, Automation Technology - Sensors and Actuators



Manufacturer	binder
Description	M12 Square male panel mount connector, Contacts: 4, unshielded, single wires, IP40, UL, Square
Part Number	76 0931 0111 00004-0500
Mass	15.4 kg
product segment	Automation Technology - Sensors and Actuators
numbers of contacts	4
design	Square male panel mount connector
locking system	screw
termination	single wires
installation type	Housing assembly
EMC	unshielded

coding	A-coded
degree of protection	IP40, IP67 with seal, see accessories
wire gauge mm	0.25 mm²
wire gauge AWG	AWG 24
Mechanical durability	> 100 Mating cycles
Rated current	4 A (3 A UL)
Rated voltage	250 V
pollution degree	3
overvoltage category	II
insulating material group	III

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Mass (kg)	product segment	numbers of contacts	design	locking system	termination	installation type	EMC	coding	degree of protection	wire gauge mm	wire gauge AWG	Mechanical durability	Rated current	Rated voltage	pollution degree	overvoltage category	insulating material group
1	1	76 0931 0111 00004-0500	M12 Square male panel mount connector, Contacts: 4, unshielded, single wires, IP40, UL, Square	15.4	Automation Technology - Sensors and Actuators	4	Square male panel mount connector	screw	single wires	Housing assembly	unshielded	A-coded	IP40, IP67 with seal, see accessories	0.25 mm²	AWG 24	> 100 Mating cycles	4 A (3 A UL)	250 V	3	II	III

Product Description

M12 Square male panel mount connector, Contacts: 4, unshielded, single wires, IP40, UL, Square

Documentation

technical specification 76 0931 0111 00004-0500
