By BERTHOLD MARX

Steel tension Gas Spring

Vérin à gaz - compas

Manufacturer	BERTHOLD MARX

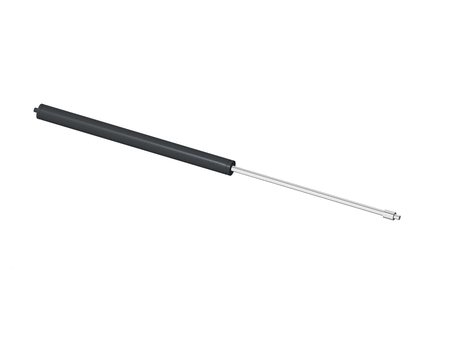

Description	Steel Tension Gas Spring stroke 400mm
Part Number	ST T28400F1 V

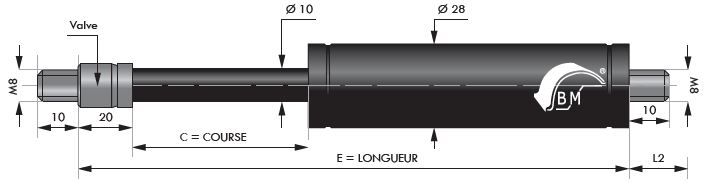

C - Stroke (in mm)	400
E - Length (in mm)	900
F1 - Force (in Newtons)	From 150 to 1200
Material	Steel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	C - Stroke (in mm)	E - Length (in mm)	F1 - Force (in Newtons)	Material
1	1	ST T28100F1 V	Steel Tension Gas Spring stroke 100mm	100	300	From 150 to 1200	Steel
2	2	ST T28150F1 V	Steel Tension Gas Spring stroke 150mm	150	400	From 150 to 1200	Steel
3	3	ST T28200F1 V	Steel Tension Gas Spring stroke 200mm	200	500	From 150 to 1200	Steel
4	4	ST T28250F1 V	Steel Tension Gas Spring stroke 250mm	250	600	From 150 to 1200	Steel
5	5	ST T28300F1 V	Steel Tension Gas Spring stroke 300mm	300	700	From 150 to 1200	Steel
6	6	ST T28350F1 V	Steel Tension Gas Spring stroke 350mm	350	800	From 150 to 1200	Steel
7	7	ST T28400F1 V	Steel Tension Gas Spring stroke 400mm	400	900	From 150 to 1200	Steel
