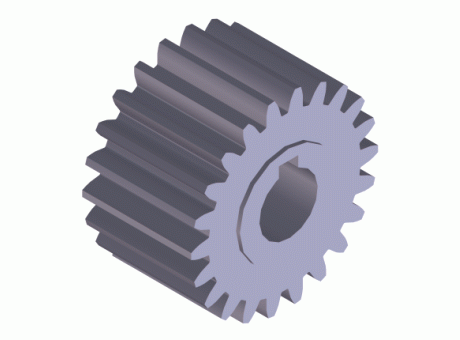

Spur gears, straight teeth, modul 5, hardened, Quality 6e25, serie 24 9...

Manufacturer	ATLANTA
Description	Spur gears, straight teeth, modul 5, hardened, Quality 6e25, serie 24 9...
Part number	24 98 521

CAD models

Request for quotation

Product selection

Level of detail

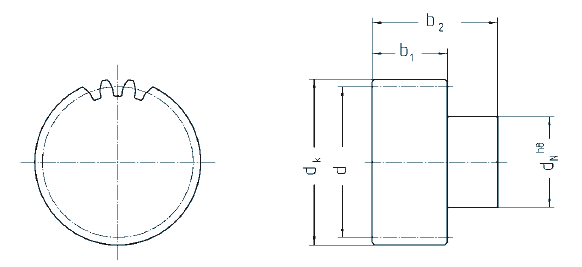

Index	Selector	Order number	z	d (mm)	dk (mm)	dN (mm)	b1 (mm)	b2 (mm)	Weight (kg)	Material
1	5	24 98 521	21	105	115	80	50	90	4.9	16MnCr5, 1.7131
2	1	24 98 522	22	110	120	80	50	90	5	16MnCr5, 1.7131
3	2	24 98 525	25	125	135	110	50	110	9	16MnCr5, 1.7131
4	3	24 98 528	28	140	150	110	50	110	10.2	16MnCr5, 1.7131
5	4	24 98 530	30	150	160	110	50	110	10.9	16MnCr5, 1.7131

Contact the supplier

ATLANTA

Manufacturer of power transmission components

ATLANTA Antriebssysteme GmbH
