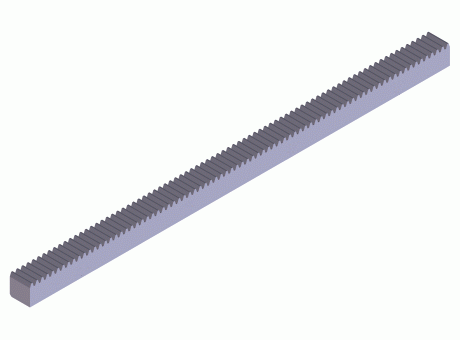

Racks, straight, hardened, Quality 10, serie 27...

Manufacturer	ATLANTA
Description	Racks, straight, hardened, Quality 10, serie 27...
Part number	27 10 025

CAD models

Request for quotation

Product selection

Level of detail

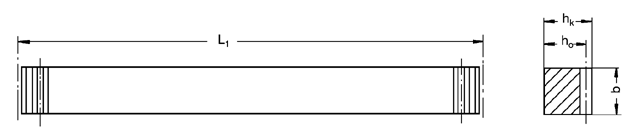

Index	Selector	Order number	Description	Werkstoff	Modul	L1 (mm)	z	b (mm)	hk (mm)	ho (mm)	GTf [1/1000mm]	Weight (kg)
1	1	27 10 025	Racks for continuous assembly, straight teeth	C 45k	1	251.33	80	15	15	14	0.2	0.41
2	2	27 10 050	Racks for continuous assembly, straight teeth	C 45k	1	499.51	159	15	15	14	0.2	0.82
3	3	27 10 100	Racks for continuous assembly, straight teeth	C 45k	1	999.03	318	15	15	14	0.2	1.64
4	4	27 15 025	Racks for continuous assembly, straight teeth	C 45k	1.5	249.76	53	17	17	15.5	0.2	0.51
5	5	27 15 050	Racks for continuous assembly, straight teeth	C 45k	1.5	499.51	106	17	17	15.5	0.2	1.03
6	6	27 15 100	Racks for continuous assembly, straight teeth	C 45k	1.5	999.03	212	17	17	15.5	0.2	2.06
7	7	27 15 200	Racks for continuous assembly, straight teeth	C 45k	1.5	1998.05	424	17	17	15.5	0.2	4.11
8	8	27 20 025	Racks for continuous assembly, straight teeth	C 45k	2	251.33	40	20	20	18	0.2	0.71
9	9	27 20 050	Racks for continuous assembly, straight teeth	C 45k	2	502.65	80	20	20	18	0.2	1.41
10	10	27 20 100	Racks for continuous assembly, straight teeth	C 45k	2	999.03	159	20	20	18	0.2	2.81
11	11	27 20 150	Racks for continuous assembly, straight teeth	C 45k	2	1507.96	240	20	20	18	0.2	4.25
12	12	27 20 200	Racks for continuous assembly, straight teeth	C 45k	2	1998.05	318	20	20	18	0.2	5.62
13	13	27 20 300	Racks for continuous assembly, straight teeth	C 45k	2	3015.93	480	20	20	18	0.2	8.49
14	14	27 25 025	Racks for continuous assembly, straight teeth	C 45k	2.5	251.33	32	25	25	22.5	0.2	1.1
15	15	27 25 050	Racks for continuous assembly, straight teeth	C 45k	2.5	502.65	64	25	25	22.5	0.2	2.21
16	16	27 25 100	Racks for continuous assembly, straight teeth	C 45k	2.5	997.46	127	25	25	22.5	0.2	4.38
17	17	27 25 200	Racks for continuous assembly, straight teeth	C 45k	2.5	2002.77	255	25	25	22.5	0.2	8.8
18	18	27 30 025	Racks for continuous assembly, straight teeth	C 45k	3	254.47	27	30	30	27	0.2	1.61
19	19	27 30 050	Racks for continuous assembly, straight teeth	C 45k	3	499.51	53	30	30	27	0.2	3.16
20	20	27 30 051	Racks for continuous assembly, straight teeth	C 45k	3	508.94	54	30	30	27	0.2	3.22
21	22	27 30 101	Racks for continuous assembly, straight teeth	C 45k	3	1017.88	108	30	30	27	0.2	6.44
22	23	27 30 150	Racks for continuous assembly, straight teeth	C 45k	3	1526.81	162	30	30	27	0.2	9.66
23	24	27 30 200	Racks for continuous assembly, straight teeth	C 45k	3	1998.05	212	30	30	27	0.2	12.64
24	25	27 30 201	Racks for continuous assembly, straight teeth	C 45k	3	2035.75	216	30	30	27	0.2	12.88
25	26	27 30 300	Racks for continuous assembly, straight teeth	C 45k	3	3053.63	324	30	30	27	0.2	19.32
26	27	27 40 025	Racks for continuous assembly, straight teeth	C 45k	4	251.33	20	40	40	36	0.2	2.83
27	28	27 40 050	Racks for continuous assembly, straight teeth	C 45k	4	502.65	40	40	40	36	0.2	5.65
28	29	27 40 100	Racks for continuous assembly, straight teeth	C 45k	4	1005.31	80	40	40	36	0.2	11.31
29	30	27 40 150	Racks for continuous assembly, straight teeth	C 45k	4	1507.96	120	40	40	36	0.2	19.97
30	31	27 40 200	Racks for continuous assembly, straight teeth	C 45k	4	1998.05	159	40	40	36	0.2	22.47
31	32	27 40 201	Racks for continuous assembly, straight teeth	C 45k	4	2010.62	160	40	40	36	0.2	22.61
32	33	27 40 300	Racks for continuous assembly, straight teeth	C 45k	4	3015.93	240	40	40	36	0.2	33.93
33	34	27 50 025	Racks for continuous assembly, straight teeth	C 45k	5	251.33	16	50	40	35	0.2	3.44
34	35	27 50 050	Racks for continuous assembly, straight teeth	C 45k	5	502.65	32	50	40	35	0.2	6.87
35	36	27 50 100	Racks for continuous assembly, straight teeth	C 45k	5	1005.31	64	50	40	35	0.2	13.74
36	37	27 50 150	Racks for continuous assembly, straight teeth	C 45k	5	1507.96	96	50	40	35	0.2	20.4
37	38	27 50 200	Racks for continuous assembly, straight teeth	C 45k	5	2010.62	128	50	40	35	0.2	27.48
38	39	27 52 100	Racks for continuous assembly, straight teeth	C 45k	5	1005.31	64	50	50	45	0.2	17.1
39	40	27 52 200	Racks for continuous assembly, straight teeth	C 45k	5	2010.62	128	50	50	45	0.2	34.2
40	42	27 60 051	Racks for continuous assembly, straight teeth	C 45k	6	508.94	27	60	50	44	0.2	10.49
41	44	27 60 101	Racks for continuous assembly, straight teeth	C 45k	6	1017.88	54	60	50	44	0.2	20.99
42	46	27 60 201	Racks for continuous assembly, straight teeth	C 45k	6	2035.75	108	60	50	44	0.2	41.97
43	47	27 62 101	Racks for continuous assembly, straight teeth	C 45k	6	1017.88	54	60	60	55	0.2	25
44	48	27 62 201	Racks for continuous assembly, straight teeth	C 45k	6	2035.75	108	60	60	55	0.2	50
45	49	27 80 100	Racks for continuous assembly, straight teeth	C 45k	8	1005.31	40	79.5	79.5	71.5	0.2	44.63
46	50	27 80 200	Racks for continuous assembly, straight teeth	C 45k	8	2010.62	80	79.5	79.5	71.5	0.2	89.26
47	51	27 11 100	Racks for continuous assembly, straight teeth	C 45k	10	1005.3	32	100	100	90	0.2	70.6

Documentation

Instructions for use of racks
